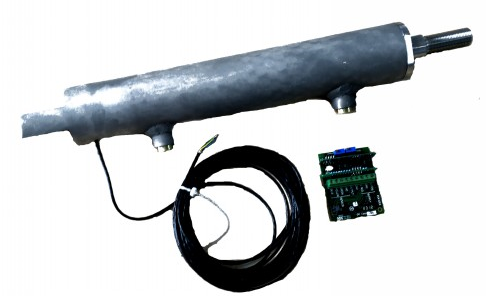

Meet all applications, such as hydro-cylinder, air cylinder and actuator electric stoke measurement function requirement. Achieve 0.1mm accuracy technology request and high precision motion control.

Cylinder material cast iron, steel, aluminium-alloy and 316L stainless steel viable
Working pressure of cylinder from 150-2000bar viable
Piston rod hardness from 229-285HB viable
Coaxiality tolerance in 0.03-0.06mm
Germany Merkel sealing will be used

Electric stroke from 25-1200mm viable
Supply Voltage 10-30Vdc
Electric output signal 0-5Vdc, 0.5-4.5Vdc, 0-10Vdc and 4-20mA viable
The linearity sensor Penny&Giles UK, MTS USA and local brand viable
Electric life cycles meet more than 20 million
Inductive displacement transducer and magnetostriction linearity sensor viable
