AC Laminated Solenoid (Model TT6)
Product Family:ML2551
AC operated solenoids have an in-rush current, providing a high initial stroke force, and can utilise longer strokes than DC solenoids for the above reason.
AC laminated solenoids may 'hum' in operation, depending on the application conditions. It is important to ensure that the armature (plunger & yoke) be allowed to seat, otherwise over-heating of the solenoid coil may occur.
Key Features
§  High force/small size
§  Flying leads or tags
§  Optional voltage ratings
§  Optional encapsulated coil
§  Available from RS & Farnell
§  51mm x 25mm x 53mm
§  100% power 17 Watts ac
§  15N force at 16mm stroke

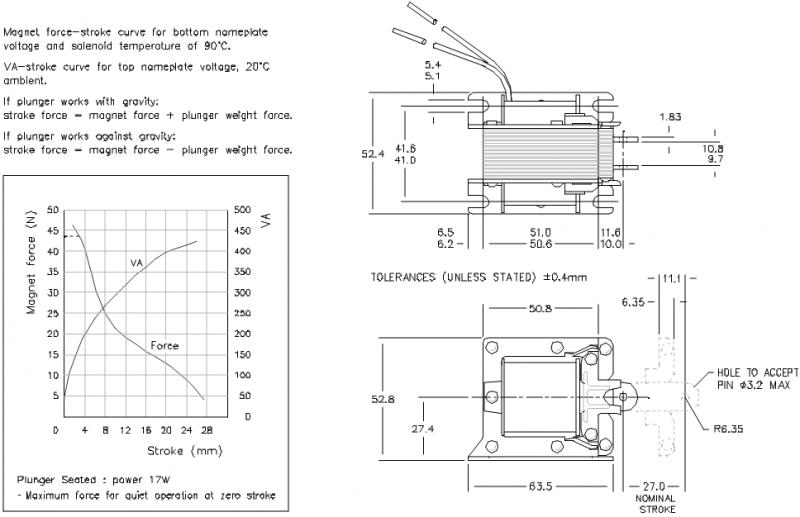

Outside Design drawing and duty rate

Specification
For more details and confirm part number, please contact our sales team.
