MD1743 (Model D6)
Type MD1743 D Frame solenoid utilizes a 4-sided closed steel frame 43mm x 48mm x 41mm and Ø17mm plunger.
The Penny + Giles D Frame solenoids are high quality, with excellent performance – they are more electrically efficient than equivalent sized C Frame solenoids and have improved mechanical strength due to the closed box frame around the coil.
The increased ruggedness, cost effective design, high quality and excellent performance makes this type of solenoid a popular choice for many motion control, security, and automation applications.
Key Features
§  Pull or thrust types available
§  Flying leads or tags
§  Optional voltage ratings
§  AC option available
§  43mm x 48mm x 41mm
§  100% power 14.5 Watts dc
§  2.0N force at 16mm stroke

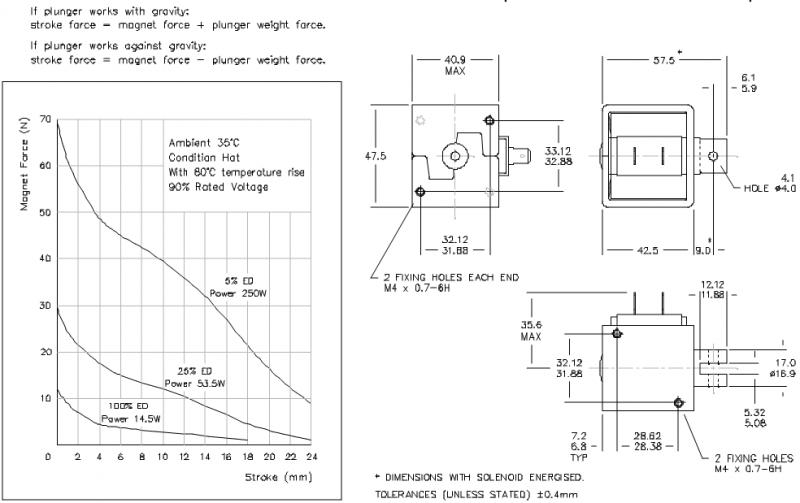

Outside Design drawing and duty rate

Specification
For more details and confirm part number, please contact our sales team.
