MD1444 (Model D5)

Type MD1444 (Model D5) D Frame solenoid utilizes a 4-sided closed steel frame 44mm x 38mm x 32mm and Ø14mm plunger.

The Penny + Giles D Frame solenoids are high quality, with excellent performance – they are more electrically efficient than equivalent sized C Frame solenoids and have improved mechanical strength due to the closed box frame around the coil.

The increased ruggedness, cost effective design, high quality and excellent performance makes this type of solenoid a popular choice for many motion control, security, and automation applications.

Key Features

§  Pull or thrust types available

§  Flying leads or tags
§  Optional voltage ratings
§  AC option available
§  44mm x 38mm x 32mm
§  100% power 12.0 Watts dc
§  1.5N force at 14mm stroke

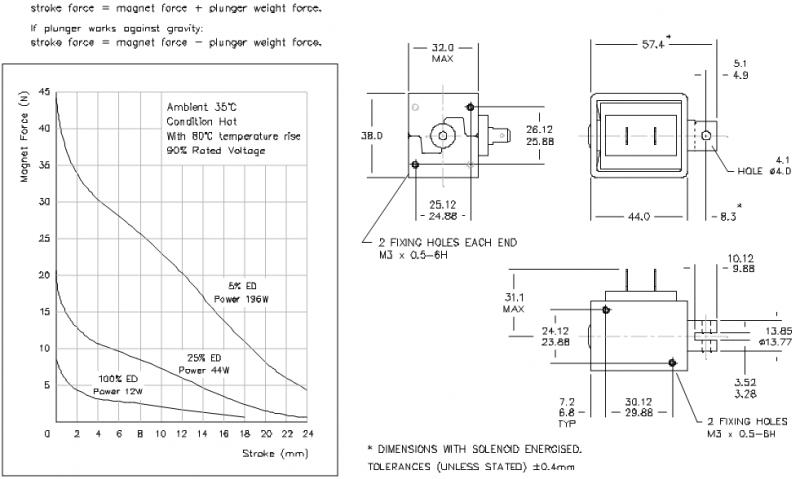

Outside Design drawing and duty rate

Specification

For more details and confirm part number, please contact our sales team.
