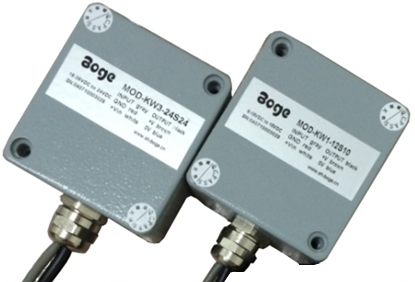

MOD-KW series DC-DC convert power module

Many OEMs feedback to Boge Aut that electronic components in control system can’t be get steady and isobarically supply voltage ,such as sensor ,electric joystick,accelerator, solenoid valve, car light, instrument and so on because of control system became more and more intelligentize and modularization. All above condition happened will lead to output signal of electronic components serious drift . In order to let customer motion control system more excellent performance ,Boge has supplies many different electric function DC-DC convert power module according to customers different technology requested .

Key Features
Wide supply voltage (2：1) ,output power can customized
Conversion efficiency more than 80%
With remote control on or off function
Short-circuit protect in long time , canrecover by itself
On or off no electric brush
Isolation voltage more than 1500VDC
Working temperature -40 to 85℃
Stock temperature -55℃~ +125℃
Aluminium alloy body ,can meet EMC request and easy to heat dissipation
Weight about 200g ( not include harness )
Dimension L64mm, W35mm, H64mm
Temperature drift ±0.03%/℃(100℃full load)
Ripple wave & noise ≤5.0%/0.5ms(Typ)
Relative voltage regulation ≤±0.2%
Load regulation ≤±0.5%
Stand-by power consumption
Input rejector is by capacitance
Positive output accuracy ≤±1.0%
Negative output accuracy ≤±3.0%
No-load output accuracy, primary path ≤±3.0% and side road ≤±5.0%

Specification
For more details and confirm part number, please contact our sales team.
