Trio+ controllerthe next generation scrubber-dryer control system

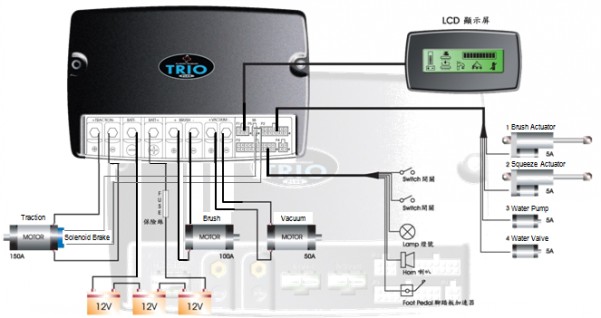

Direct control of all major scrubber-dryer function from a single unit

Traction Motor Output 50A or 100A or 150A versions
Brush motor output 100A variable speed
Vacuum motor output 50A variable speed

Improved relibility and ruggedness
Increased performance and functionality
Fully compatible with previous Trio installations
Powerful machine diagnostic with on-board system log

The Trio+ control system represents the next step in control systems designed speciafically for battery operated scrubber-dryers.
It is perhaps the advanced controller available to floorcare machine OEM's today, offering major enhancements in reliability, performance and function.
Trio+ controller every major function on a typical scrubber dryer, while having the requiried level of robustness and ruggedness to survive both the harsh environments and the user abuse that floorcare machines are regularly subjected to.

TRACTION MOTOR OUTPUT
Programmable, high frequency PWM full bridge provides up to 150A of power, with smooth acceleration and regenerative braking in both forward and reverse directions.
SOLENOID BRAKE OUTPUT
Provides up to 100A of power with programmable soft start, current limit, variable speed and timers.
VACUUM MOTOR OUTPUT
Provides up to 50A of power with programmable, soft start, current limit, variable speed and timers.
BRUSH DECK ACTUATOR OUTPUT
Bi-directional output allows full control of linear actuators to raise and lower the brush deck. Programmable current limit and stall detect allows actuators without end of travel switches to be used.
SQUEEGEE ACTUATOR OUTPUT
Bi-directional output allows full control of linear actuators to raise and lower the squeegee blade. Programmable current limit and stall detect allows actuators without end of travel switches to be used.
SOLUTION PUMP OUTPUT
Uni-directional output allows speed or flow control of a cleaning solution pump. Programming options allow a number of preset flow rates to be configured.
AUXILIARY OUTPUT
Fully programmable uni-directional output can be used for other devices such as re-circulation pumps or anti-drip valves.
REVERSE ALARM OUTPUT
Can be programmed to provide a pulsed or steady signal at 12, 24 or 36V when the machine is backing up.
WARNING LIGHT OUTPUT
Can be programmed to drive warning beacons,brake lights or similar at 12, 24 or 36V.
OUTPUT PROTECTION
All outputs are fully self-protected against overcurrent, short circuit or wiring errors, and the high-power outputs have programmable current limits. This means that there is no need to fit the fuses and circuit breakers that would normally be required to protect the motors and pumps connected to the Trio+ control system.
INPUT PROTECTION
All inputs are programmable and are protected against possible damage by wiring errors. The input impedance is sufficiently low to prevent problems
due to moisture and conductive contaminants.



The LCD module
Provides the user with a backlit, dot-matrix display of the various functions on the machine, together with a battery status display and hour meters.Diagnostic information is also displayed when required, identifying the nature and location of the fault detected - for example, a short-circuited vacuum motor. The display software can be customized to suit each manufacturer’s requirements, so that product differentiation is maintained.
The LCD module also provides alternate connections for all of the control switches, and allows the use of membrane keypads by accepting momentary pushbuttons and providing an LED output driver for each associated input.

Specification
For more details and confirm part number, please contact our sales team.
