BP32 pressure sensors for general application are better of the range pressure transducers. Their accuracy, reliability, resistance to corrosion and mechanical load make them suitable for all pressure measuring tasks - in production, development or in the laboratory. The case and wetted parts comprise stainless steel and are thus resistant to chemically aggressive media. The pressure connection and measuring element are welded together, making the measuring system particularly resistant to mechanical shock or vibration.  Two potentiometers enable the zero point and measuring range to be set. The pressure sensors for general application meet the electronic magnetic compatibility (EMC) requirements to EN 61 326

Application
Off-high way ,special machine, machinery tool, aerospace, weapons, boat, oil machine, chemical engineering, pump ,power, gas, automation and compressor

Key Features
o Measuring ranges from 25 mbar to 2500 bar
o Finely graded selection of nominal ranges
according to EN
o Corrosion resistant, stainless steel design
o High overload protection
o Highly resistant to shock and vibration
o For dynamic or static measurements
o Good reproducibility
o Simple installatio

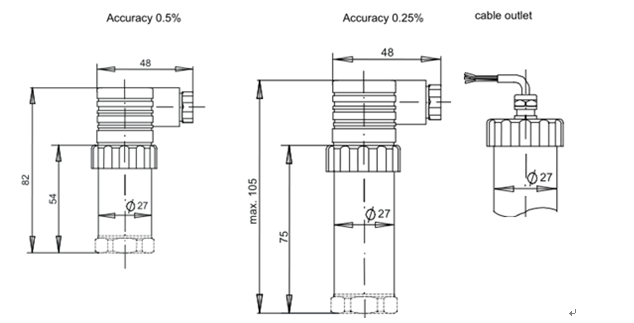

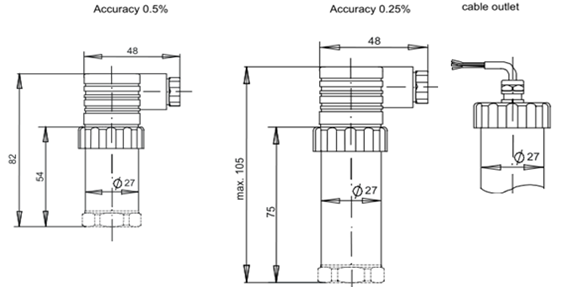

Outside Design dimension


Specification
For more details and confirm part number, please contact our sales team.
