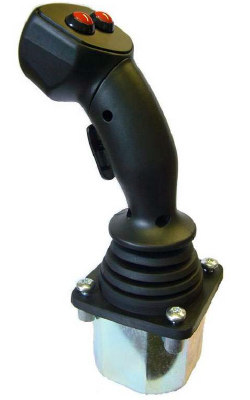

JC6000 rugged joystick controller is designed for demanding operator control applications in off-highway vehicles and other man-machine interfaces, where strength, reliability, and handle functionality are important.

The JC6000 is available with one or two axis configurations and can be supplied with non-contact Hall effect sensors or long life potentiometer tracks.  The compact size, high lever strength and superb proportional control are ideal for applications as below.

Application:aerial platform, coal machine, fire cannon, Simulated flying empty platform
driller's console, offshore cranes,winch, crane truck, fire truck ,driller, loaders, excavators, access platforms, tractors and harvesters,port machine, dump truck, heavy fork, roller, hydraulic machine, snow removal truck, milling machine, jumbolter, wet spraying machinery, platform lorry, coal elevator.


Key Features
◾Rugged design with superior lever strength
◾Single or Dual axis control
◾Range of ergonomic handle designs
◾Hall Effect or Potentiometric sensing
◾Analog or CAN outputs
◾Sealed above panel to IP66
◾Safety features - switch/logic functions
◾Superb proportional control
◾Easily installed and interchangeable with model JC600

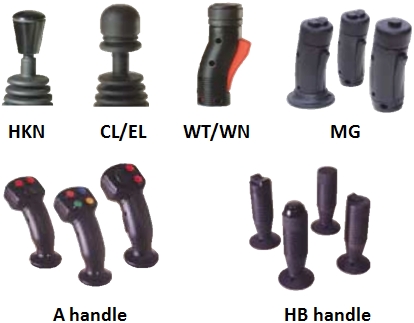

 Handle Type



Specification
For more details and confirm part number, please contact our sales team.
Tel:0086 21-50687812  Fax:0086 21-50687839 Email: sales@sh-boge.cn
