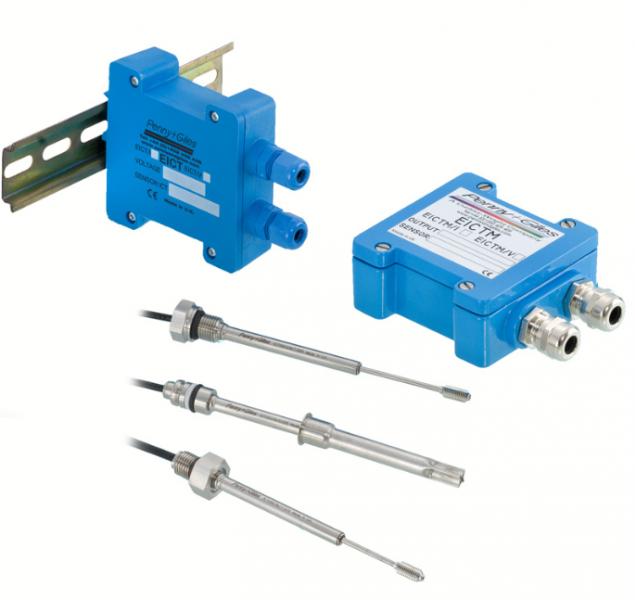

ICT contactless In-Cylinder Linear Transducer combines the better features associated with LVDTs and potentiometers into one rugged, contactless and highly reliable displacement transducer. With no electrical sliding contacts, the ICT has a working life which is almost limitless. Working pressure to 500 Bar (7,500 psi) CE approved.



Application：Fire truck, coal machine, electro-hydraulic control, rubber plastic machine, cut & packing, metallurgy& forge, water conservancy and hydraulic potion feedback.



Choose Part Number

ICT050 |Φ5.4mm|25 - 500 mm

FLANGE OPTION

EM= external metric flange  IN=internal flange

CORE OPTION

SC= sleeved core    TM= threaded core metric

TEMPERATURE RANG

H=-20℃ to +200℃  L=-55℃ to +120℃

CABLE OPTION

P5=0.5m cable   01=1.0m cable  06=6.0m cable

OUTPUT SIGNAL

EICT=0.5 to 4.5VDC

EICT and VM=0 to 10VDC

EICT and CM=4 to 20mA



ICT080 |Φ8.00mm| 25 - 1000 mm

FLANGE OPTION

EM= external metric flange  IN=internal flange

CORE OPTION

SC= sleeved core    TM= threaded core metric

LINEARITY

A= ±0.2% total stroke, up to ±0.25%    B= ±0.4% total stroke, up to ±0.5%

TEMPERATURE RANG

H=-20℃ to +200℃  L=-55℃ to +120℃

CABLE OPTION

01=1.0m cable   06=6.0m cable

OUTPUT SIGNAL

EICT=0.5 to 4.5VDC

EICT and VM=0 to 10VDC

EICT and CM=4 to 20mA



ICT100 |Φ10.10mm|25 - 2000 mm

FLANGE OPTION

EM= external metric flange  IN=internal flange

CORE OPTION

SC= sleeved core    TM= threaded core metric

LINEARITY

A= ±0.2% total stroke, up to ±0.25%      B= ±0.4% total stroke, up to ±0.5%

TEMPERATURE RANG

H=-20℃ to +200℃  L=-55℃ to +120℃

CABLE OPTION

01=1.0m cable  04=4.0m cable  06=6.0m cable

OUTPUT SIGNAL

EICT=0.5 to 4.5VDC

EICT and VM=0 to 10VDC

EICT and CM=4 to 20mA
