BTE01 resistance thermometer „PT Compact“ is designed for temperature measurement in processes with medium and low pressures. Measurement ranges between -200°C and +600°C cover the majority of your temperature measuring tasks. The thermometers are available with platinum sensors PT100 or PT1000 in 2 -, 3 -, 4 or 2x2-wire circuit. If the measuring signal has to be transmitted over longer distances, the PT Compact plus is available with an integrated transmitter. This transmitter converts the resistance of the platinum sensor into a linear temperature signal 4-20 mA or 0-10 V.

Application
Aerospace, weapons, boat, oil machine, chemical engineering, pump ,power, gas, automation and compressor

Key Features
stainless steel, bare heavy vibration and shock, high temp performance, IP65
-50 to 50℃to  -200 to 600℃
Accuracy: B lever or A lever
Feeler lever diameter 6mm, 8mm , 3mm
10 to 30VDC supply ;  screw connection
4 to 20mA ; 0-10VDC output signal
Electric connector harness ; M12*1,4 pins

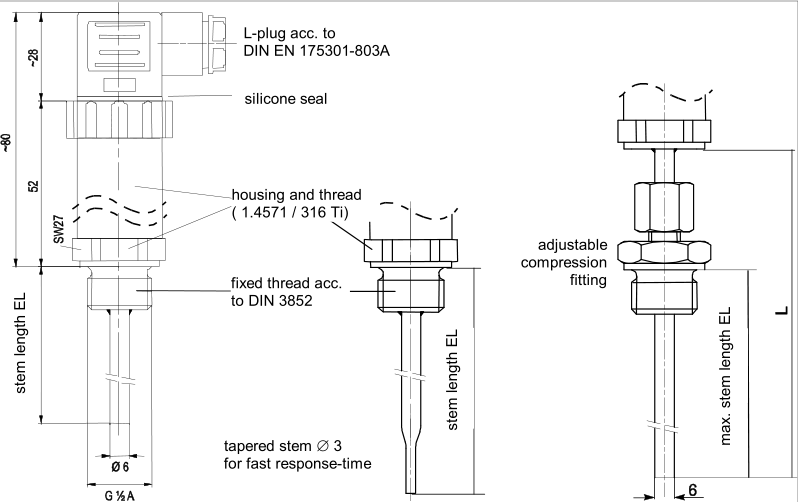

Outside design drawing



Specification
For more details and confirm part number, please contact our sales team.
