The float switch 298… monitors the fill levels in water, hydraulic oil and fuel tanks. Thanks to its sturdy construction, up to lengths of 1200 mm, one-sided mounting without end support is sufficient.

Features
Sturdy construction with very few moving parts
Operating temperature range -40 to +85 degrees C
Wide variety of connector types
Switching points with 10mm to 35mm spacing
Long lifetime due to wear-free reed contacts
Standard flange with different hole patters

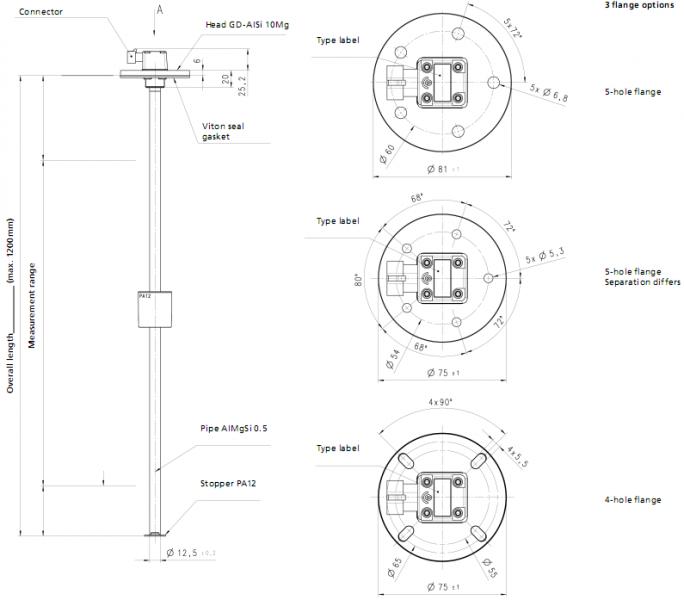

Outside Design Drawing

Specification

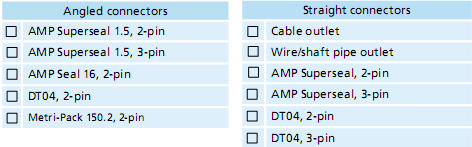

Connector types

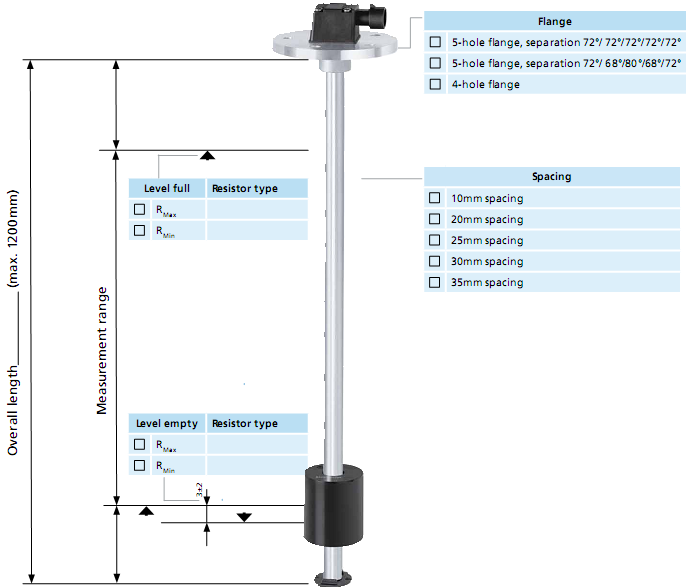

Specification
For more details and confirm part number, please contact our sales team.
