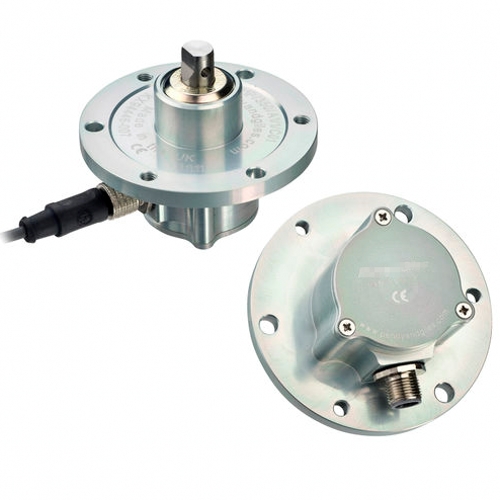

SRH500P dual output contactless rotary sensor has been specially developed to meet the harsh operating requirements in heavy duty industrial position sensing applications, including construction, agricultural, military and utility vehicles, as well as a variety of uses in steelworks, marine equipment and power generating plants. This model has an option for environmental protection to IP69K.

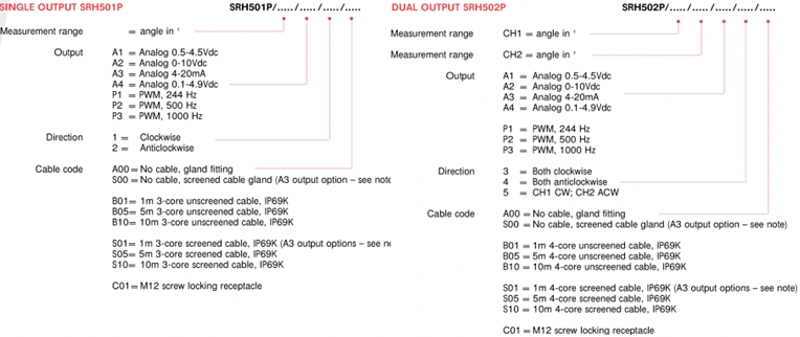

The SRH500P rotary sensor operates from either a 5Vdc regulated or 9-30Vdc unregulated supply and can be factory programmed to have a measurement range from 20° up to 360° in 1° increments. The sensor can be supplied with single output (SRH501P) or dual output (SRH502P). Both outputs are individually configurable at the factory for analogue or digital output and clockwise or anti-clockwise output.



Application: Fire truck, coal machine, electro-hydraulic control, rubber plastic machine, cut & packing, metallurgy& forge, water conservancy, crane truck, heavy platform.

Key Features

◾ Contactless - Hall effect technology

◾ Single or dual redundant output

◾ Analog or Digital (PWM) output, also can do Canopen J1939

◾ Measurement range 20° to 360°

◾ 12 bit resolution

◾ CW or ACW output

◾ Less than 1mVrms output noise

◾ Superior shaft strength

◾ Sealing option to IP69K

◾ M12 connector option for easy installation
