JC150 joystick controller has a robust design. It has been developed for challenging operator control applications, which demand a strong lever, dependability of signal, and handle functionality. Examples include off-highway automobiles such as loaders, cranes, access platforms, tractors, excavators, harvesters, and other human-machine interfaces.



JC150 is provided with a durable conductive plastic track potentiometer. It also features directional,center off or end switches that give signals to sense lever direction and detection of faults. It is compact, yet provides the better lever strength and optimum proportional control. It has a long service life. Its connector is standard AMP automotive type.



It provides spring-to-center or friction hold single axis control. It has IP65 protection above the panel. Excellent proportional control is provided by the analog and switched outputs. Options include center lever lock and detent. A wide variety of handles and multi-function grips are available.



Application：aerial platform , fire cannon, Simulated flying empty platform,driller's console, offshore cranes, winch, driller, loaders, access platforms, tractors and harvesters, dump truck, heavy fork, roller, hydraulic machine, snow removal truck, milling machine, wet spraying machinery, platform lorry, coal elevator.



Key Features

§Single axis control with spring-to-center or friction hold action

§Sealed above the panel to IP65

§Rugged design

§Center lever lock and detent options

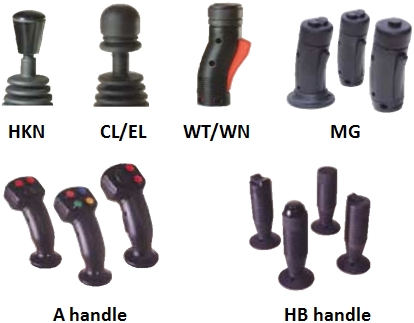

§Range of handles and multi-function grips

§Superb proportional control with analog and switched outputs

§With 1.6KΩ,5KΩ,10 KΩ 0-100% output; 2 KΩ 10-90% output; 2.9 KΩ 25-75% output

§Long operational 5 million life
