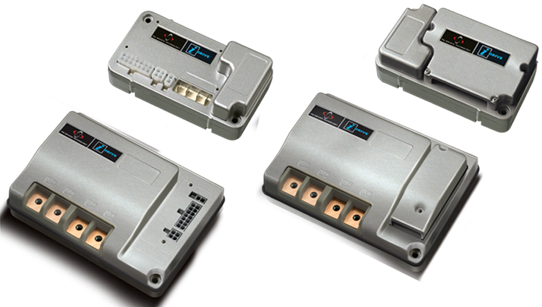

I-Drive Compact Control for Walk-behind and Ride-on Cleaning Machines

The I-Drive permanent magnet motor speed controller has been designed specaifically for applications such as walk-behind floorcare machines and small materials handing devices. I-Drive provides a combination of features, protection and cost-effectiveness unmatched by some controllers on the market at present.

I-Drive is available with 45A, 70A, 140A, 180A and 200A power out-puts for both 24V and 36V system voltage and employs advanced control algorithms for smooth and precise speed control. In addition to the main motor output, the I-Drive features 3 auxiliary outputs with programmable operating modes and timers. These outputs can be used to drive solenoid brakes, brush and vacuum relays, warning alarms or similar devices.



The powerful on-board diagnostics log records the details of system problems for all electric items connected to the I-Drive , allowing difficult,intermittent wiring problems to be solved rapidly . A run timer is also included,so that the total numbers to be solved rapidly. A run timer is also included, so that the total number of hours that machine has been driven is recorded. Programming is achieved by PGDT hand-held devices or PC based programming software

The electronics of the I-Drive are sealed against water ingress to IPx5 and when the optional connector sealing system is fitted, the cable connections are protected to IPx4. Low impedance inputs and current limited output drivers provide full protection against electric faults and wiring errors. These features allow the I-Drive to function safely and reliably in the harsher of environments.

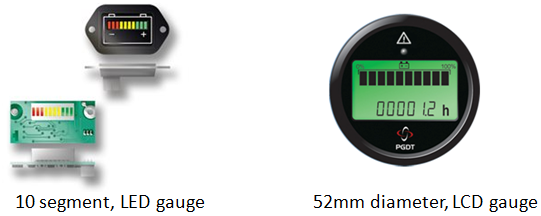

Displays
The optional Trucharge or iGauge displays provide accurate battery status indication and useful diagnostic information when a problem occurs anywhere on the eletrical system

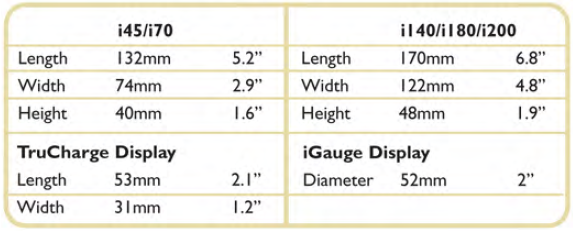

Controller Dimensions



Specification
For more details and confirm part number, please contact our sales team.
