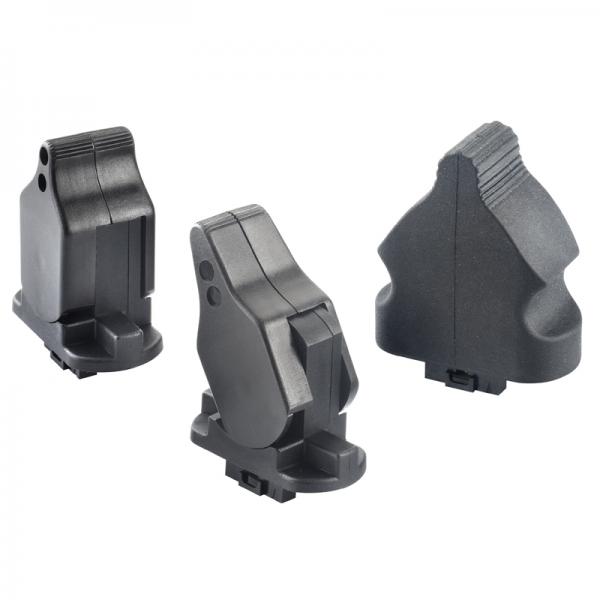

JC120 is a minimum width, low profile joystick controller that provides smooth, precise fingertip control in one axis with a choice of two lever lengths.
The JC120 is sealed to IP66 to enable it to operate in extreme environments. Standing only 54 or 64mm high, the JC120 is less susceptible to unintentional operation. With all of the components contained within the handle, it is ideal for mounting in low profile panels and arm rests.
An optional neoprene boot is available for the short handle version, allowing operation in environments where aggressive materials are present, protecting from dust and dirt ingress.
New friction hold versions have been introduced, which allow the lever to be set to a specific position for applications such as setting speed controls.
Typical applications include remote control chest packs and the control of construction, agricultural or material handling equipment.
Key Features
◾ Width only 26.5mm
◾ Low profile ergonomic design, five million operations
◾ Choice of lever heights, short handle can match rubber
◾ Center or End return spring mechanism - with or without mechanical detents
◾ Friction hold version - with or without mechanical detents
◾ Sealed to IP67 with optional neoprene boot for aggressive particle protection
◾ Choice of track resistance values and output ranges
◾ With 4KΩ 0-100%output ; 5KΩ 10-90% output; 5KΩ 25-75% output.

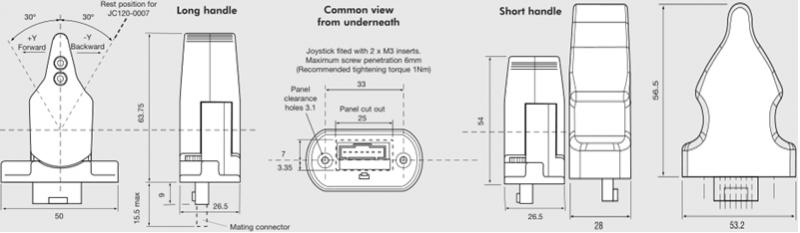

Outside Design Drawing
Specification
For more details and confirm part number, please contact our sales team.
