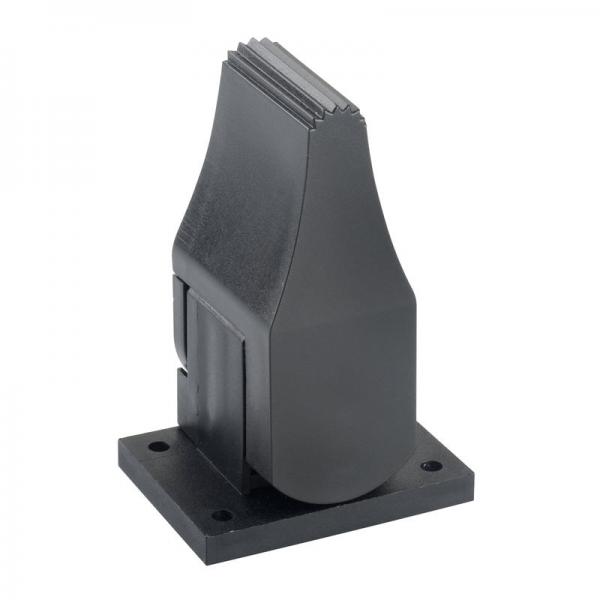

JC100 is a compact as well as low profile joystick controller specially made for applications where ergonomics as well as system integrity is must. It has a smooth performance and precise finger tip control in a single axis.

The JC100, sealed to IP66 can enable it to work in rugged situation and environments. A all the components are fitted in the handle which is just 70 mm in height it can be easily mounted in low profile panels as well as arm rests. As the installation time is highly reduced because of an electronic connector the joystick can easily function anywhere. It has a maintenance free design and can operate up to five million operations or more.

It can be used typically in places such as emote control chest packs and controlling construction, agricultural or material handling equipment.

It is high feature product. It has a highly low profile ergonomic design. It has analogue as well as switched outputs. It has a center return spring mechanism. It has a choice of track resistance values as well as output ranges. It has a standard FCI Dubox automotive connector.

Key Features
◾Low profile ergonomic design
◾Analogue and direction switche outputs
◾Center return spring mechanism
◾Choice of track resistance values and output ranges
◾With 4KΩ0-100%output ; 5KΩ10-90% output; 5KΩ25-75% output.

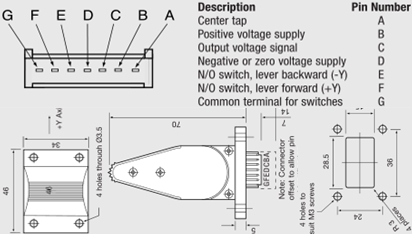

Outside Design Drawing


Specification
For more details and confirm part number, please contact our sales team.
