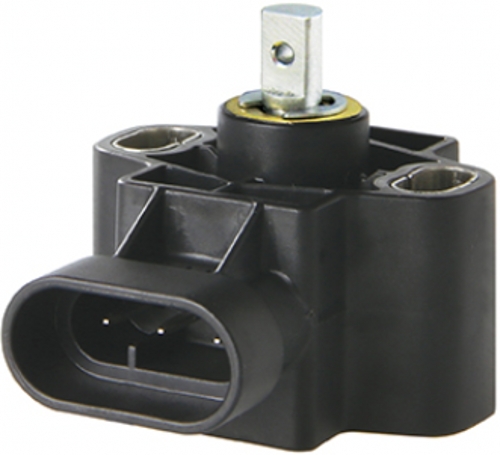

PTY non-contacting hall effect rotary Sensor for use in harsh environments. Large selection of analog and digital interfaces. Highly accurate and very attractively priced. The contactless sensor utilizesthe orientation of a magnetic field for the determination of the measurement angle. The magnetic field orientation is captured with an integrated circuit. An analog output signal represents the calculated angle. The housing is made of a special high grade temperature- resistant plastic material. Elongated slots allow simplicity in mounting together with ease of mechanical adjustment.

Key Features
Test angle range :50° (±25°); 60° (±30°); 70° (±35°); 90° (±45°); 120° (±60°); 180° (±90°); 270° (±135°); 360° (±180°)
Redundancy : NO ; Material  PBT
Supply voltage : 5±0.5 VDC or 10 to 30 VDC
Output signal : 0.5 V to 4.5 V
Max Current :  20 mA when 5VDC supply ; 32 mA when 10-30VDC supply
TEMP Working : -40°C to 125°C
Accuracy : ±1.6%;  Linearity: ±0.35;   Life cycle : 35M  Sealing ：IP67
Connector :AMP female connector
Install Lever : According to customer request
EMI ：100 V/m,  200 MHz to 1000 MHz/ISO11452-2
EMI ：5VDC supply：100 mA BCI meet ISO11452-4,   1 MHz to 200 MHz
10-30VDC supply：100 mA BCI meet ISO11452-4, 1 MHz to 400 MHz
EMC：technology higher than CE request

Application
Fire truck, coal machine, electro-hydraulic control, rubber plastic machine, cut & packing, metallurgy& forge, water conservancy, crane truck, heavy platform.

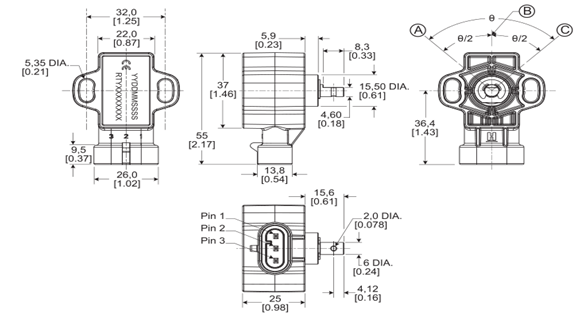

Outside design drawing(55 mm L x 43 mm W x 41 mm H)
