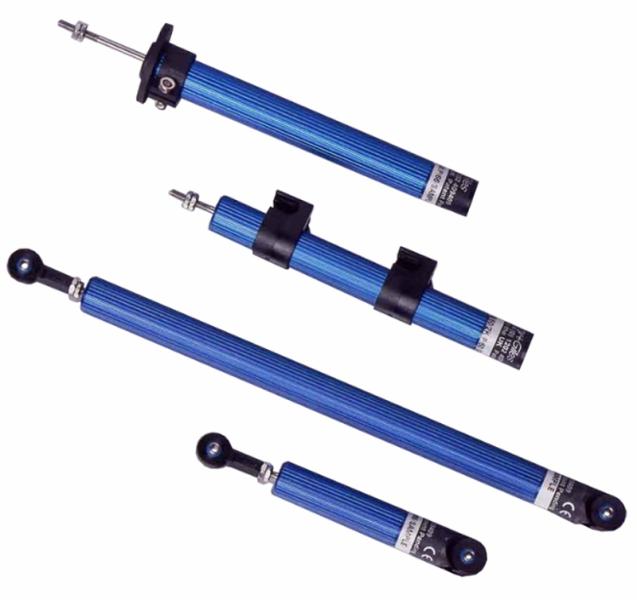

SLS&MLS
SLS&MLS by using the proven benefits of Hybrid Track Technology and including a number of unique design features, which is ideally suited to high volume OEM manufacturers, where high performance and reliability with competitive pricing and rapid despatch has paramount importance. In different diameters designed to provide maximum performance benefits within an extremely compact size.
Application: electro-hydraulic control, rubber plastic machine, cut & packing, metallurgy& forge, water conservancy and hydraulic potion feedback.

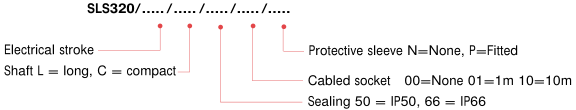

Choose Part Number
SLS095 10 to 100mm (10-50mm increase in 10mm;50-100mm increase in 25mm,each 10mm 0.4KΩ).
SLS130 25 to 200mm (increase in 25mm; each 25mm 1 KΩ)
MLS130 25 to 200mm(increase in 25mm ; each 25mm 1 KΩ; with protect sleeve compare SLS130 ,IP66)
SLS190 25 to 350mm(increase in 25mm; each 25mm 1 KΩ; replaced HLP190/SA linear sensor)
SLS320 250 to 1600mm (increase in 50mm; resistance value=2 KΩ*E/50)
Specification
For more details and confirm part number, please contact our sales team.
