TBJoystick Switch

TB0102F   singleaxis joystick switch with friction in both max end positions
TB0102S  single axis joystick switch with spring function
TB01020304Fdual axis joystick switch with friction in both max end positions。
TB01020304Ssingle axis joystick switch with spring function

KEY FEATURES
LEVER OPERATION FORCE         2.5N breakout in centre, 10N breakout from friction
LEVER MECHANICAL ANGLE        ±30°
EXPECTED LIFE                    1 million operations
OPERATEING TEMPERATURE       -40 to 70℃
STORAGE TEMPERATURE          -45 to 75℃
ENVIRONMENTAL PROTECTION    IP67 IEC60529
SUPPLY VOLTAGE                  48/24/12/5VDC
MAX CURRENT                     6/4/2/1A
MAX FORWARD POSITION           NO
CENTRE POSITION                  OFF
MAX BACKWARD POSITION          NO

APPLICATION
Telecom, kinds of machines , remote control ,off-high way, medical and communication equipments

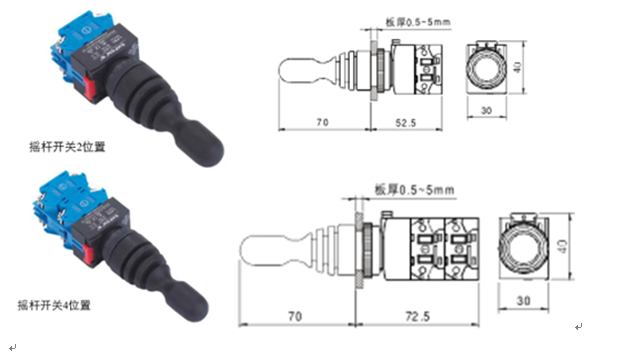

OUTSIDE DESIGN DIMENSION


SPECIFIATION
For more details and confirm part number, please contact our sales team.
