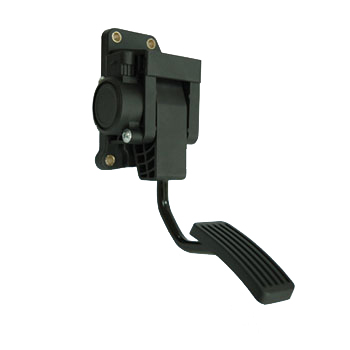

MO372 Throttle Pedal
Application
Tractors, harvester, yachts, off vehicles , on-high way truck, scrubbing machine, oil&gas drilling machine, match to all kinds of engines
|
Technical Data |
|
Engines |
Suitable for different engine interfaces |
|
Technology |
Contactless measuring principle |
|
Output |
Single or Double output full redundant |
|
Output Type |
Analog , PWM , IVS options |
|
Output Voltage |
For Analog , programmable.............0-5V |
|
For PWM and IVS...........................5V or 10-30Voptions |
|
Supply Voltage |
5V or 10-30V |
|
Kickdown |
Virtual effect option |
|
Protective rating |
IP6K9K Sensor |
|
Counter connector |
6 way, Delphi Packard Metric Pack 150 |
|
Mechanic |
Two independent springs |
|
Operating Angle |
19° |
|
Operating Temp |
-40℃...........+85℃ |
|
Actuations |
Up to 10 million |
|
Weight |
1.05kg |
|
Options |
Connector kit,customized wire harness |
|
Housing material |
Heavy duty metal case |
|
Application |
Commercial and off road vehicles |
|
Initial Treadle Angle |
30°，35°，40°，45°treadle angle position option |

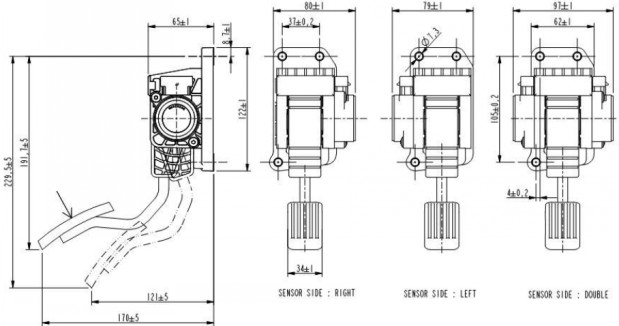

Design Dimensions
Specification
For more details and confirm part number, please contact our sales team.
