Application
Throttle control, Fire truck, coal machine, electro-hydraulic control, rubber plastic machine, cut & packing, metallurgy& forge, water conservancy, crane truck, heavy platform

Mechanical
Contactless / Full redundant double die sensor.
Suitable for different interfaces.
Seal Integrity: Sensor IP6K9K sealed.
Operating temperature: -40°+85°C
Weight: 65g

Electrical
Supply voltage 5V or 12-30V options
Integrated connector :6 way, Delphi Packard Metri Pack 150
Single or Dual output (programmable)
Single/Dual Analog type: 0-5V / 0-10V / 4-20mA / PWM
Shock and vibration robust
Analog+IVS type: Analog + HighSide or LowSide Switch
Options: Customized wire harness and connector kit for different engine interfaces
CAN type: SAE J1939 / CANopen
Programmable 0.1° resolution
Lifetime: more than 2 Million cycles
Operating Angle: 50° (±25°); 60° (±30°); 70° (±35°); 90° (±45°); 120° (±60°); 180° (±90°); 270° (±135°); 360° (±180°) programmable

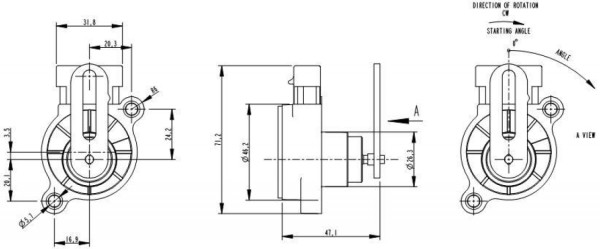

Design Dimensions


Specification
For more details and confirm part number, please contact our sales team.
