C3 is a compact and cost-effective AC motor controller for small Industrial vehicles.

Kinds of Function
Compact & Cost-Effective
200Arms motor output
Compatible with all AC induction motors
Versatile throttle & brake pedal inputs
Three coil outputs
Intelligent Hill-Hold function
Programmable start-up sequence options
Low battery management
CANopen comms
On-board Status LEDs
Integrated service timers
Sealed to IPx5
Designed to the requirements of EN60335-2-72 and UL583

Displays

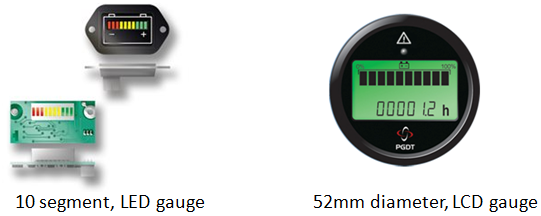

The optional Trucharge or iGauge displays provide accurate battery status indication and useful diagnostic information when a problem occurs anywhere on the eletrical system

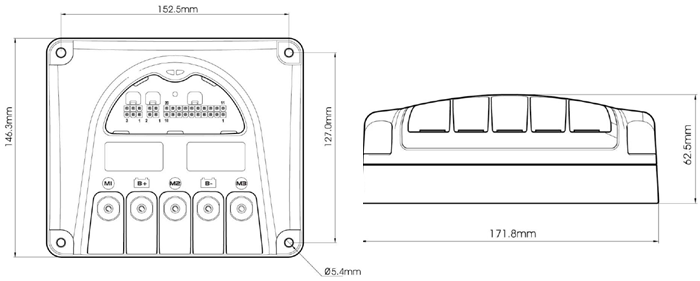

Controller Dimensions



Specification
For more details and confirm part number, please contact our sales team.
