ET-10  type alloy steel steelyard sensor designed by engineering way to optimize dimension, can meet high accuracy request , has a good performance linearity, test range from 3-10T, have got certificate of CE, RoHS and EX.

Key Features
Sensitivity（mV/V）:2.00±0.010             Non-linearity:±0.02%FS
Hysteresis: ±0.02%FS                        Repetition: ±0.01%FS
Creep rate (30 min): ±0.02%FS                Zero output:  ±1.00%FS
Temperature coefficient:±0.02%FS/10℃        Input resistance：（Ω）385±10
Output resistance:（Ω）350±3                Insulation resistance:  ≥5000MΩ
Bridge voltage: 10V(DC/AC)            Compensated temperature range :  -10~+50℃
Working TEM:  -20~+60℃                   Over test range :  ≤120%FS
Connection cable:  Φ5.4* 0.5m  IP67
Electric connection:
Red cable: + Voltage
Black cable : GND
Output cables : Greed+ & while GND

Application
Steelyard and need to test tension machines

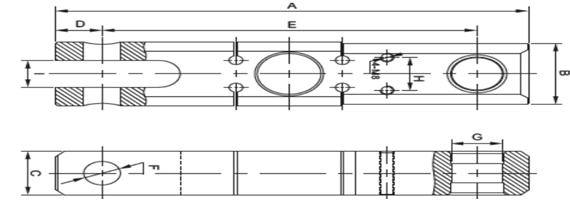

Outside Design Dimensions



Specification
For more details and confirm part number, please contact our sales team.
