F53 anew force transducer with a welded thin film sensor was developed. The usage of standardised sensors, which are welded into the measuring element, makes an automated manufacturing possible. Combined with an accuracy of 2% or 1%, the load pins are also of interest for OEM applications due to the attractive price- performance ratio. Thin film sensors, produced by very modern manufacturing technology, have all advantages of the conventional bonded foil strain gauges, but without having their substantial disadvantages

Applications
Shear bolt in deviation rolls and mountings on rolling bearings
Industrial weighing
Automation of the manufacturing process
Measuring of tensions in cables
Machine and plant construction

Key Features
Measuring ranges 5 kN … 50 kN
Output signals:  4...20 mA;  2-wire, 0...10 VDC;  3-wire  CANopen


Outside design dimension

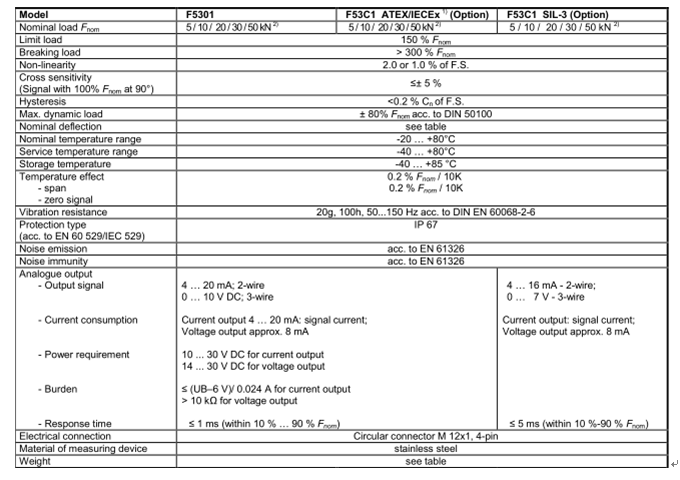

Specification
For more details and confirm part number, please contact our sales team.
