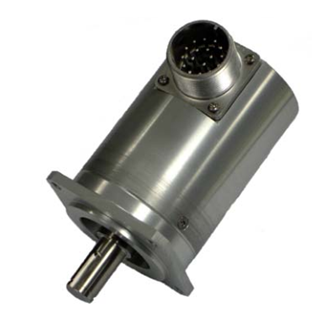

Encoder is an extra heavy duty unit which employs a highly reliable Opto-Asic encoder mod-ule mounted within a rugged mechanical housing. The heavy duty sealed bearings, togetherwith double O-Ring sealing makes this encoder a serious and reliable alternative to a widerange of machine tool encoders, and at an advantageous price.

Features
• Standard 68mm Diameter Package
• Up to 3000 PPR, Opto-Asic Technology
• Square Flange Mounting
• IP65 Double O-Ring Sealed

Environmental
Operating Temp.........0º to 70º C for standard models
0º to 100º C for high temperature option
Storage Temp ............-25º to +85º C
Humidity.....................95% RH non-condensing
Vibration ....................10 g @ 58 to 500 Hz
Shock .........................50 g @ 11 ms duration
Sealing ......................IP64, (IP65 optional )

Electrical
Input Voltage ..............4.75 to 24 VCC max for temperatures up to 70º C
Input Current ..............100 mA max with no output load
Input Ripple ................100 mV peak-to-peak at 0 to 100 kHz
Output Format ............Incremental- Two square waves in quadrature with
channel A leading B for clockwise shaft
rotation, as viewed from the encoder mounting
face. See Waveform Diagrams below.
Output Types..............Push-Pull- 20 mA max per channel
Line Driver- 20 mA max per channel (Meets RS
422 at 5 VCC supply)
Index ...........................Occurs once per revolution. The index is
Ungated. See Waveform Diagrams below.
Freq Response ..........Up to 200 Khz
Noise Immunity ..........Tested to BS EN61000-4-2; IEC801-3; BS
EN61000-4-4; DDENV 50141; DDENV 50204; BS
EN55022 (with European compliance option); BS
EN61000-6-2; BS EN50081-2
Symmetry ...................180º (±18º) electrical at 100 kHz output
Quad Phasing ............1 to 2540 PPR: 90º (±22.5º) electrical at 100 kHz
output
Min Edge Sep ............1 to 2540 PPR: 67.5º electrical at 100 kHz output
Rise Time ...................Less than 1 microsecond
Accuracy ....................Instrument and Quadrature Error: For 0500 to
2540 PPR, 0.017º mechanical (1.0 arc minutes)
from one cycle to any other cycle.

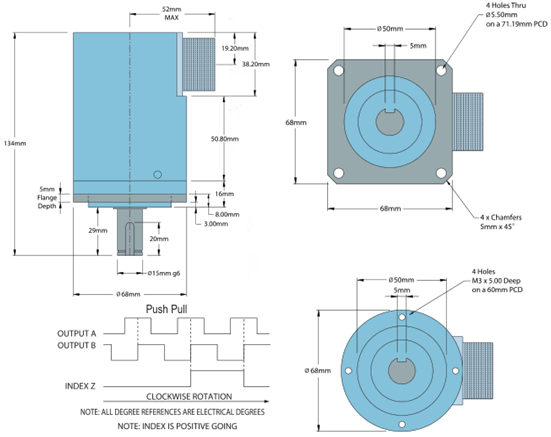

Outside Design Dimension

Specification
For more details and confirm part number, please contact our sales team.
Tel:+0086 21-50687812  Fax:+0086 21-50687839 Email: sales@sh-boge.cn
