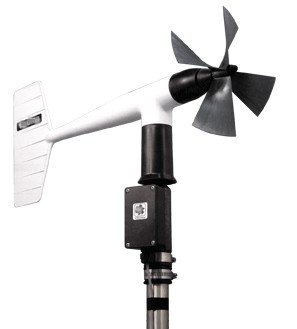

XFY3type wind speed and direction sensor can work in rugged environment, such as strong wind, oceanic climate and heavy vibration. It has a good aerodynamic system, with wide test wide speed range and steady electric function, also it’ s very convenient for installation.

Application
Huge crane truck , heavy port machine, ocean station, meteorological station, ship and float.

Key Features
Wide speed test range : 1.0-75.0 m/s
Wide direction test range: 0-360º
Start speed: ≤1.2m/s
Speed test accuracy ≤±0.5m/s when (0～10)m/s
                 ≤±5%×test speed range when (10～95)m/s
Speed test signal : PWM(0-990Hz) scope 5V or 12V
Speed computational formula :Vspeed m/s = V=0.0960×frequency Hz
Direction test range: 0º～360º
Direction output :0-5VDC or 0-2.5V
No wide test: ≤10 º(big than 30º,1.5 m/s)
Supply voltage: 9～18VDC
Current consumption :10±2mA　
Working TEM : -20～50 ℃
Stock TEM :﹣30～60℃
Relative humidity: 0-100%
Outside dimensions :  L560mm X 373mm
Propeller diameter : 180mm
Weight : 1.28Kg

Specification
