EX0735 control station is a flexible system offering standard as well as customer-specific local control and
indicating units. You have the choice between three standard enclosures which can accomodate up to three dif-ferent control and indicating devices. Combinations of up to three ComEx enclosures are possible. Either stuffing box glands in M20 x 1.5 and M25 x 1.5 made of plastic or cable glands made of metal are available for the electrical connection. The plastic glands require no lock nuts. Metal glands are screwed into a metal earth plate sheet inside of the enclosure. Maximum amount of cable clands: two off M20. To ensure easier operation on site, each enclosure can be equipped with an individual info-label. For offshore applications special oil-resistant attachments are available

Ex protection type
II 2G Ex ed IIC T6
II 2D Ex tD A21 IP 67 T 80 °C
Class I, Zone 1 AEx ed IIC, Ex ed IIC
Class I, Division 2 Groups A, B, C, D
Ex ed IIC, T6
Certification
PTB 00 ATEX 1068
UL E184198
IECEx PTB 08.0022
INMETRO 2004 EC 02 CP003
Permissible ambient temperature
-55 °C to +60 °C
(-20 °C to +60 °C for Zone 21 and 22)
IP67, IP66

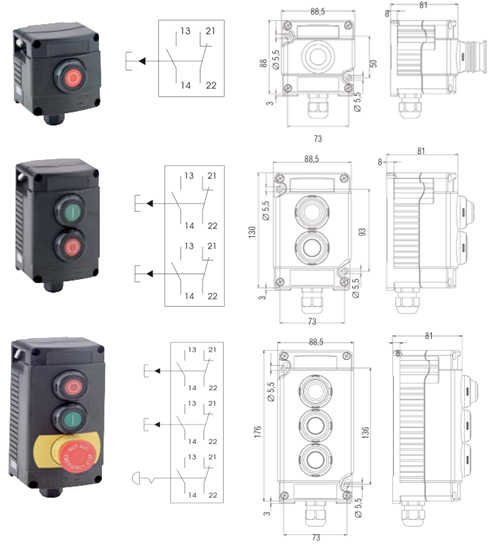

Outside Design Dimension

Specification
For more details and confirm part number, please contact our sales team.
