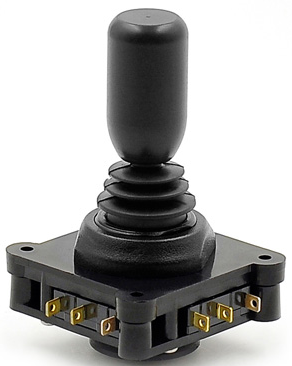

TJ heavy joystick switch,  by using gold plating contact terminal which can extend to long time working life.

Key Features
◾Automatic spring return
◾Single axis, double axis, 360° control operation
◾One button is available
◾Easy to install, flexible operation
◾Durable switch, current 250V10A

Application
Electric Wheelchairs, robots, Human-computer , Remote Video Operating Systems, Heavy Mobile Machinery, Measurement Systems, Navigation Systems, Studio Stage Lighting Equipment, Military equipment, etc

Electric Function
Stock Temperature: - 35°C ~ +85°C       Operation Temperature:  - 25°C ~ +80°C
Mechanical Angle:  ±20°                Operating Torque :  5N (≤25N)
Mechanical Life: 5 million                Supply Voltage: 125V 5A, 250V 3A, 250V 10A
Every switch has 3 wiring terminals, including normal open contact and normal close contact.

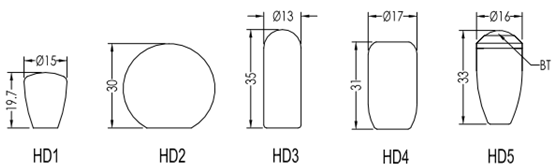

Handle Options

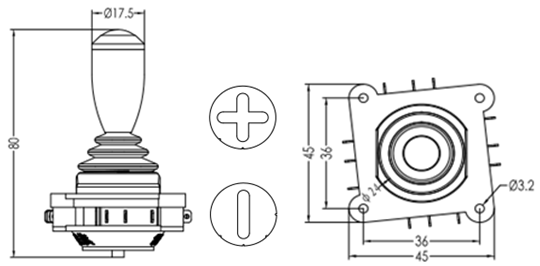

Installation Dimension



Specification
For more details and confirm part number, please contact our sales team.
