EG limit position switches
Precision single hole fixing limit position switches one changeover contact.

The round design with simple, single-hole assembly allows installation of the controls directly at the scanning points. Exact adjustment is permitted by means of the precision metric thread.

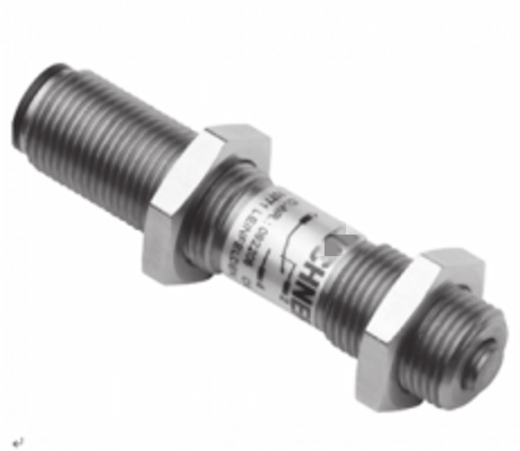

Design EGM12, M12 x 1, flat plunger, Connection cable, double insulated

KEY FEATURES

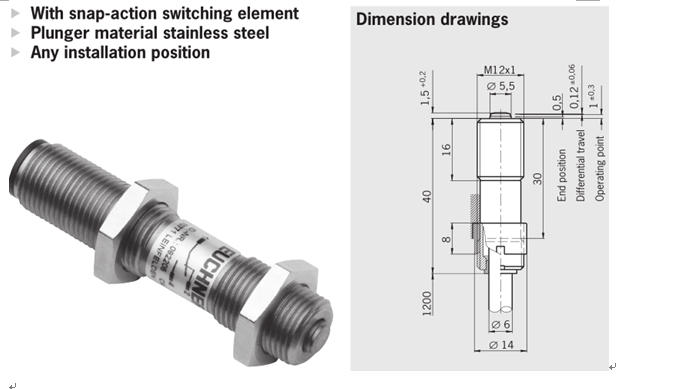

OUTSIDE DESIGN DIMENSION

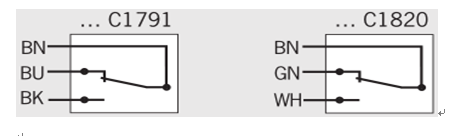

ELECTRIC CONNECTION



ORDER TYPE
Connection cable 1.2m PSEGM12-1200C1791 (075556) from -20 to 80 degrees C working
Connection cable 4m  PSEGM12-4000C1791 (076154) from -20 to 80 degrees C working
Connection cable 1.2m PSEGM12-1200C1820 (076464) from -30 to 80 degrees C working

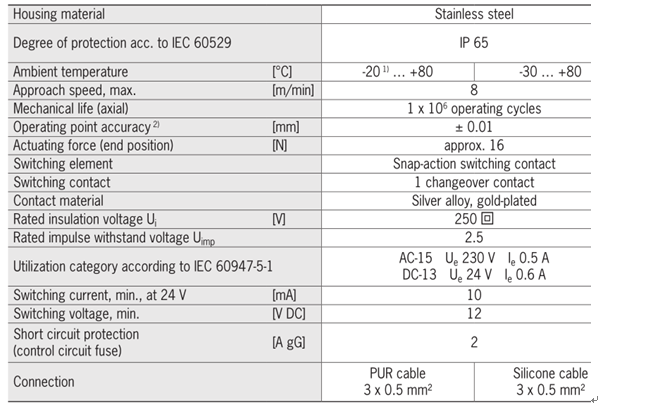

SPECIFIATION
For more details and confirm part number, please contact our sales team.
