TS0102F toggle switch

MECHANICAL
LEVER OPERATION FORCE          2N breakout in centre, 3.5N full deflection
LEVER MECHANICAL ANGLE         ±20°
EXPECTED LIFE                     0.5 million operations
ENVIRONMENTAL
OPERATEING TEMPERATURE        -35 to 85℃
STORAGE TEMPERATURE           -40 to 95℃
ENVIRONMENTAL PROTECTION      IP65 IEC60529
ELECTRICAL
SUPPLY VOLTAGE                 ≤24VDC
MAX CURRENT                      4A

APPLICATION
Telecom, kinds of machines ,remote control ,off-high way, medical and communication equipments

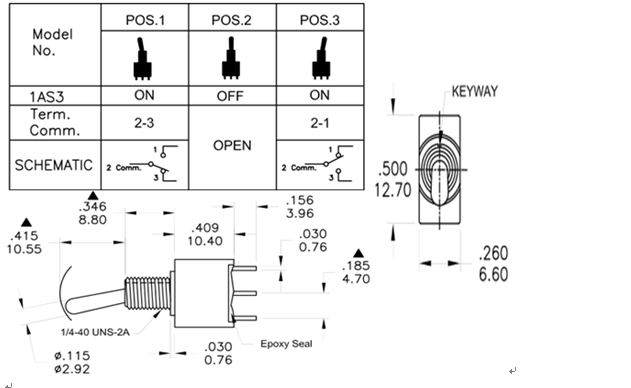

OUTSIDE DESIGN DIMENSION


SPECIFIATION
For more details and confirm part number, please contact our sales team.
Tel:+0086 21-50687812  Fax:+0086 21-50687839 Email: sales@sh-boge.cn
