Application
Engineering mechanical vehicles
Rail-mobile monitoring
Various engineering mechanical measurement of dip angle
oil-well drilling equipment
Radar detection of vehicle platform              　
Underground drill posture navigation
Gun Barrel angle measurement in early shooting
Based on the angle direction measurement
Satellite communications vehicle posture detection
Shield pipe jacking application
Ship’s navigation posture measurement
Geological equipment inclined monitoring
The intelligent excavator,cranes, pile driver, drill machine ,special vehicles , mine car ,track car ,fire truck ,aerial vehicles

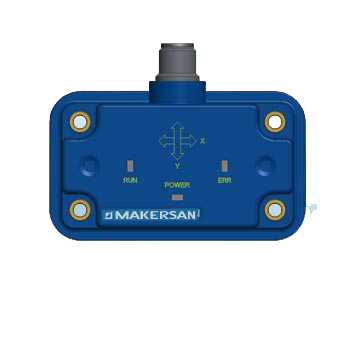

Technology Data
Supply voltage ：12-30Vdc for analog output ;
Supply voltage ：10-30Vdc for SAE J1939 or CANopen
Connector: M12x1 - 8 pin for analog output
Connector: M12x1 - 5 pin for SAE J1939 or CANopen
Casting Material: GF 30 % Polyamid
Readiness Delay: < 300 ms                             Absolute accuracy: ≤ ± 0.5 °
Repeat Accuracy: ≤ ± 0.2 °                               Resolution: ± 0.05 °
Refresh Rate: ≤ 20 ms                                      Operating Temperature:-40°+85°C
Protection: IP67                                                   Display: LED
Analog output:  0-5V   Output (5mA), 2 Digital Outputs (500mA/ch)-
0-10V  Output (5mA), 2 Digital Outputs (500mA/ch)-
4-20mA  Output, 2 Digital Outputs (500mA/ch)
Switching points for digital outputs also can be programmable
CAN output also can meet 3 axis technology request

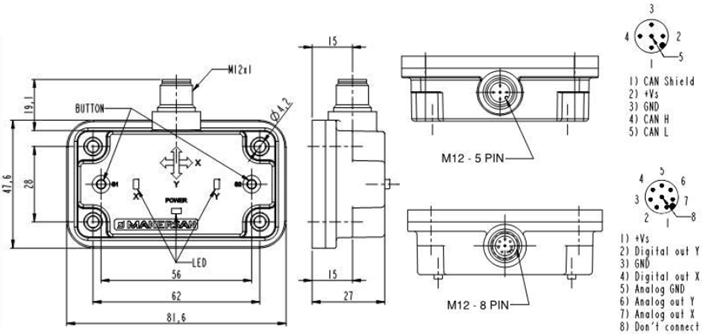

Design Dimensions


Specification
For more details and confirm part number, please contact our sales team.
Tel: 0086 21-50687812  Fax: 0086 21-50687839 Email: sales@sh-boge.cn
