FHS220 Hall Effect rotary sensor, contactless, smaller and rigid design, with high working accuracy and wide working temperature.

Application
Throttle speed control, electro-hydraulic actuator, foot pedal position, tilt position, manipulator arm position

Electric Characteristics
Output voltage 0.25 ~ 4.75Vdc; 0.75~4.25Vdc; 0.2~4.8Vdc; 0.5~4.5Vdc; 1.0~1.0Vdc
Input voltage: 5Vdc±10%                         Output current:  ≤±8mA
Electrical angle:  90°, 180° ,270°, 360°            Output load: 10KΩ typical, ≥1KΩ
Supply current: ±7.5mA typical, ≤11mA         Linearity: ±0.5% (±0.25% available)
Temperature characteristics: Within 3% Vout/FS

Mechanical Characteristics
Rotational torque : Within 5mN.m or Within 20mN.m (O-ring seal)
Total rotational angle: 360°(Endless)                Push strength :  ≥10Kg
Pull strength:  ≥10Kg                         Shaft material: Stainless steel
Bushing material: Phosphor bronze

Environmental Characteristics
Storage TEMP:  -55˚C to +125˚C            Operating TEMP :  -40˚C to +125˚C
Life: ≥10 Million cycles                   IP: IP50 Standard  IP65 Option Available
ESD: ≤8 KV body, 15KV air discharge     EMI: 100V/m, 200MHz~1GH
Shock: Per MIL R-39023, 6 ms Saw-tooth 100 G’s, 18times
Vibration: Per MIL R-39023, 10 G’s, 100 to 500 Hz, 12Hrs

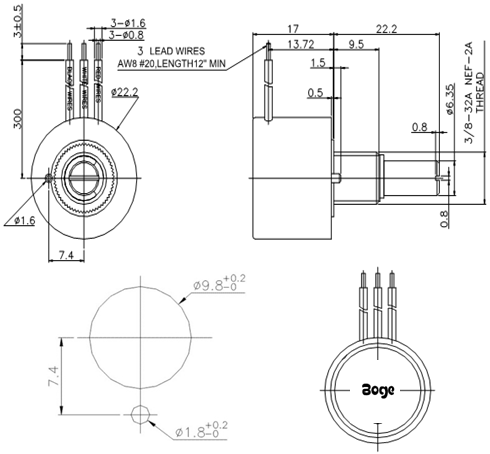

Installation Dimension

Specification
