SRH280P & SRH280DP provide reliable and accurate rotary position measurement in extreme motorsport and industrial environments where shock and vibration can occur. These new sensors use the popular 28mm flanged housing with a protection rating to IP68.

SRH280P & SRH280DP operate from either 5Vdc regulated or 9-30Vdc unregulated power supply and are available with analog (0.5-4.5Vdc; 0.1-4.9Vdc) or digital (PWM) output signals.  The sensor is factory programmable, allowing you to specify the output signal type, the measurement range (0-20° to 0-360° in 1° increments) and the output direction (clockwise or anticlockwise).

The sensor has a 12 bit resolution (0.025%) over the selected measuring range, and operates from -40 to +140°C when powered at 5Vdc.

These SRH280P & SRH280DP versions replace the former model SRH280.

Key Features
◾Contactless - Hall effect technology
◾Single or Dual output channels
◾5Vdc or 9-30Vdc supply
◾Total sensor measurement range from 0-20° to 0-360°
◾Analog or Digital (PWM) output
◾12 bit resolution over selected measuring range
◾Low noise level (1mVrms) on output signal
◾Operating temperature -40° to +140°C
◾Environmental protection to IP68
◾Crush-proof mounting flange with steel inserts
◾Rapid availability
◾EMI ：100 V/m,  200 MHz to 1000 MHz/ISO11452-2
◾EMI ：5VDC supply：100 mA BCI meet ISO11452-4,   1 MHz to 200 MHz
10-30VDC supply：100 mA BCI meet ISO11452-4, 1 MHz to 400 MHz
◾EMC：technology higher than CE request

Application
Fire truck, coal machine, electro-hydraulic control, rubber plastic machine, cut & packing, metallurgy& forge, water conservancy, crane truck, heavy platform.

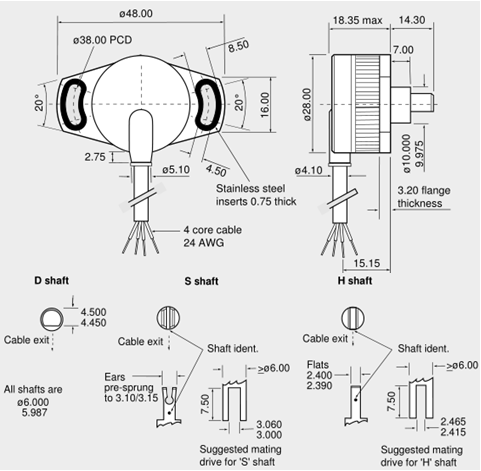

Outside design drawing

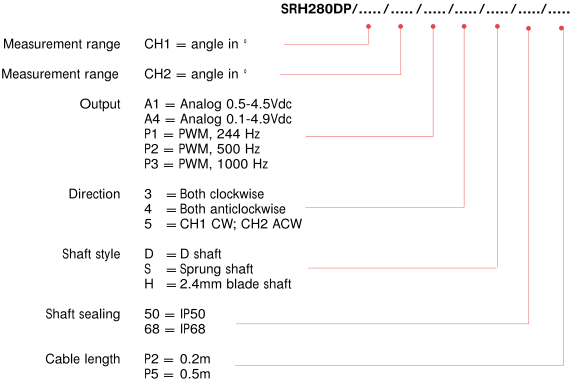

Choose part number



Specification
For more details and confirm part number, please contact our sales team.
Tel:+0086 21-50687812  Fax:+0086 21-50687839 Email: sales@sh-boge.cn
