SCA tite sensor is a digital type dual-axis tilt switch developed by RION company who integrated import control core unit , and based on level security alarm and platform leveling detection related industries application , using the transistor output circuit . Users can set alarm angle value by themselves, it will output the switch signal (output voltage = supply voltage) when exceeds the safety angle value, the drive solenoid valve will cut off the hydraulic system, also can drive the buzzer and warning lights, automatically warn the worker to operate safely .

Features
Dual-axis with 4 directions tilt measurement
Accuracy：please refer to the technical data
IP67 protection class
Resolution : 0.01°
Highly anti-vibration performance>2000g
Direct lead cable interface
Customer can set alarm angle value by himself
With Setting 0° function
Positive/negative direction output is optional
DC 9～36V wide voltage input
RS232 series output
Wide temperature working:  -40～+85℃
Switch output（high-low level)

Application
Engineering mechanical vehicles
Rail-mobile monitoring
Various engineering mechanical measurement of dip angle
oil-well drilling equipment
Radar detection of vehicle platform              　
Underground drill posture navigation
Gun Barrel angle measurement in early shooting
Based on the angle direction measurement
Satellite communications vehicle posture detection
Shield pipe jacking application
Ship’s navigation posture measurement
Geological equipment inclined monitoring
The intelligent excavator , cranes, pile driver , drill machine , special vehicles , mine car ,track car ,fire truck ,aerial vehicles.

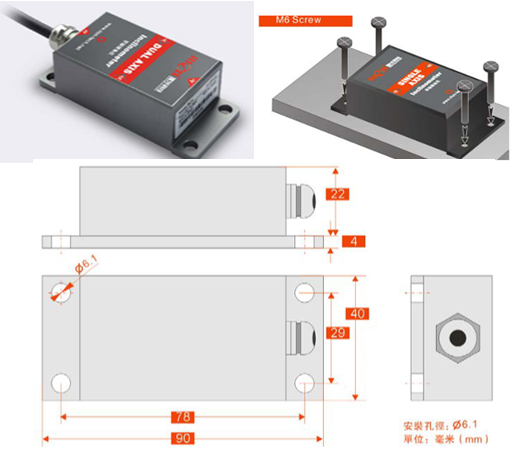

Outside Design drawing




Specification

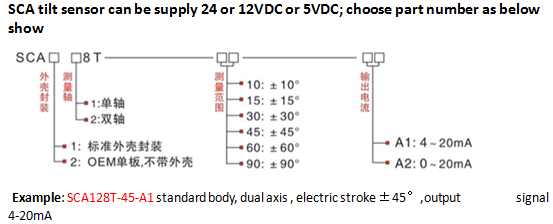

For more details and confirm part number, please contact our sales team.
Tel:+0086 21-50687812  Fax:+0086 21-50687839 Email: sales@sh-boge.cn
