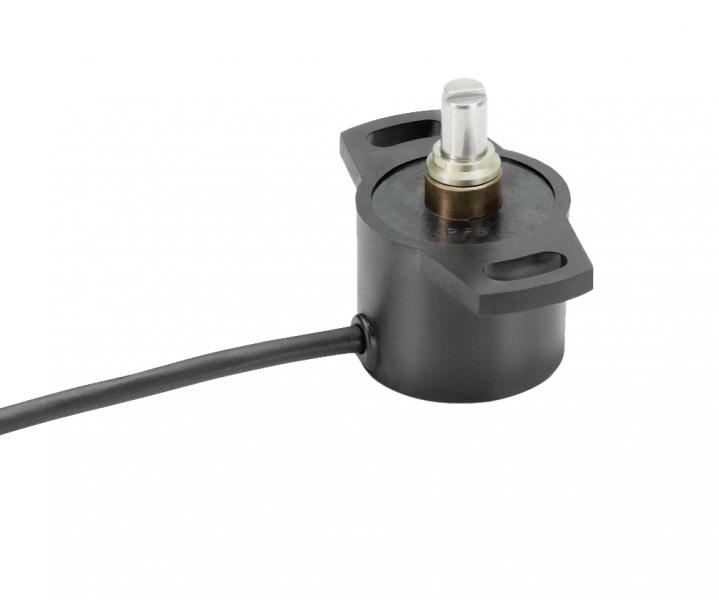

RSC28 non-contacting hall effect rotary Sensor for use in harsh environments. Large selection of analog and digital interfaces. Highly accurate and very attractively priced. The contactless sensor utilizesthe orientation of a magnetic field for the determination of the measurement angle. The magnetic field orientation is captured with an integrated circuit. An analog output signal represents the calculated angle. The housing is made of a special high grade temperature- resistant plastic material. Elongated slots allow simplicity in mounting together with ease of mechanical adjustment. The special backlash-free push-on coupling ensures extremely quick and simple installation. The transducer is not sensitive to either dirt or humidity.



Application: Fire truck, coal machine, electro-hydraulic control, rubber plastic machine, cut & packing, metallurgy& forge, water conservancy, crane truck, heavy platform.



Key Features

• non-contacting, magnetic, long life

• electrical range up to 360°, stainless steel shaft, high grade temperature resistant plastic

• available with push-on coupling or marked shaft

• protection class IP54, IP65, IP67, working TEM -40℃ to 85℃

• very small hysteresis, internal resolution 12 bit, independent linearity ±0.5 %

• single output ,with 0-10VDC or 4-20mA output ,also can supply SSI or SPI data output

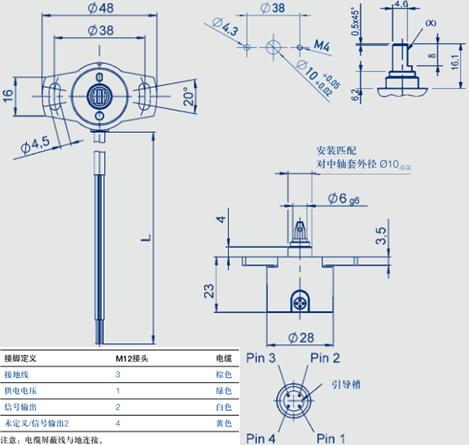

Outside Design dimension

Specification
For more details and confirm part number, please contact our sales team.
