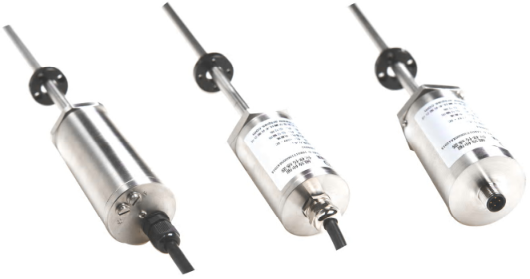

MS18 magnetostriction displacement transducer, rugged, contactless and highly reliable.Compact design can be installed in any limited space, With 50-6000mm electric stroke can be choose , analog signal 0-10V, 0-5V, 4-20mA and data output RS485.
 Applications

Vulcanizing machine, coal machine, hydraulic equipment, stamping casting equipment, wood working,metallurgy, bend machine and off-high way.

ElectricFeatures
No-linearity :>=0.05%FS                        Resolution: >=150um
Repeat accuracy:0.002%FS                     Temp drift: 50ppm/℃
Response :1KHz                               Move speed: any
Shock: 100g  IEC68-2-27                       EMC: IEC61000-4-4/3/6
Vibration:15g/100-2000Hz IEC68-2-6             Supply voltage:24 ± 2.4VDC
Overvoltage:36VDC MAX                       Reverse protection :-30VDC MIN
Power:<=100Ma                               Output ripple:<=20mV
Environmental Features
Electric module working Temp：-25 to 70℃; -40 to 80℃can choose        IP67
Humidity: 90%max                           IMS18 body working Temp: -40 to 125℃
Material: special stainless steel                  Working pressure:35Mpa-70Mpa

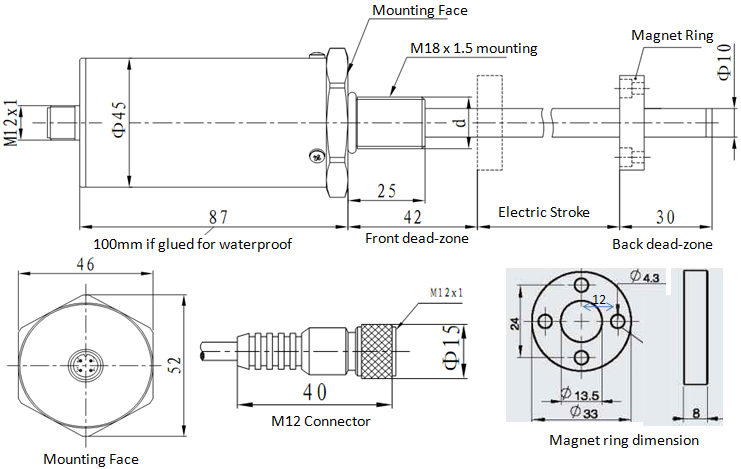

Outside Design Drawing



Specification
For more details and confirm part number, please contact our sales team.
