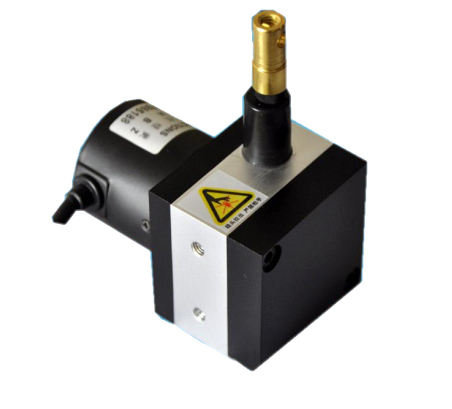

DLS Draw-wire sensormeasures linear movements using a highly flexible steel cable.
The cable drum is attached to a sensor element which provides a proportional output signal

Key Features
Effective stroke: 0-400mm; 0-800mm;0-1000mm;0-2000mm; 0-4000mm; Up to 20m
Output: 4-20mA or 0-5V or 0-10V or 0-5K Ohm or 0-10K Ohm or CANopen or SSI or RS485
Translation circute : No                      Service life :>more than 5M or 10M
Linearity : ±0.1%FS                          Repeatability :0.01%
Resolution  : Quasi-infinite                   Max. Velocity :300mm/S
Vibration frequency :50HZ                    Response frequency :300K Hz
Working voltage : 5-24VDC or 10-30VDC.      Working Temp range :-25℃to +85℃
Starting force : 4N  Weight :500g ;             Protection Class :IP54(Standard), IP65
Wire : 0.7mm Plastic-coated stainless steel ,4m   Anti- vibration : 10HZ-1500HZ; 10G
Housing component : Titanium-anodised Aluminium, the coating is a hartanodic oxidation that protects the sensor from corrosion

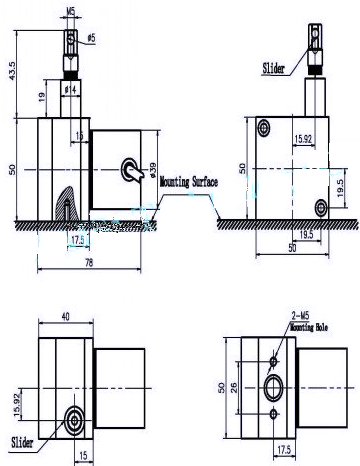

Outside Design Dimensions



Specification
For more details and confirm part number, please contact our sales team.
