BGA377 Hall Effect, no-contact operation technology, with length 51mm, different color options, can choose different connector.

Technical Data
Technology	Contactless Hall measuring principle，Full Redundant
Lifetime at full stroke	Up to 5 million, Up to 1 million with detent
Lever Angle Range	≤±30°
Lever	Self centering, soft touch
Options	Customized output signal program, Customized wire harness
Actuation	Single axis
Actuation Type	No detent, with detent, rocker 3 position
Operating Temp	-40 + 85°C
Protection	IP 6K9K electronic / IP 54 mechanical
Supply Voltage	5V
Output	Double output: Analog, PWM options
Output Voltage	Analog, programmable .0-5V/PWM(100-500Hz),5V


Outside and Installation Dimensions

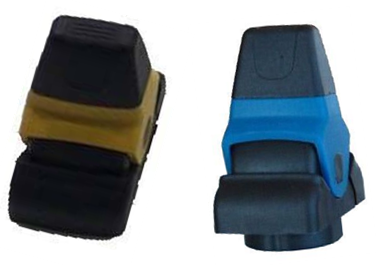

Color Options

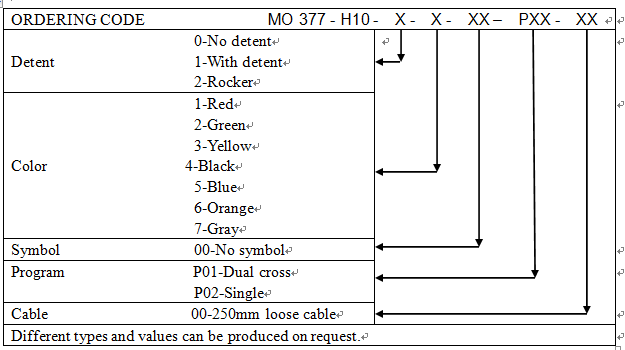

Ordering Codes

*1 No symbol is standard, other symbols are available upon request with minimum order quantity.
*2 250mm loose cable is standard；Other connections are available upon request with minimum order quantity.

Example: MO 377-H10-0-1-00-P01-00 is fingertip joystick, no detent, red, no symbol, dual cross program and 250mm loose cable.


Specification
For more details and confirm part number, please contact our sales team.
