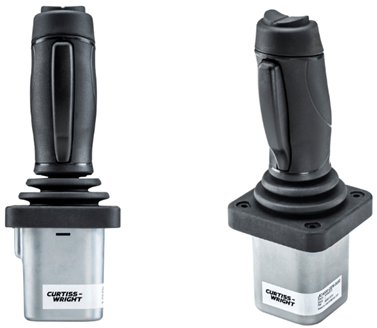

The JC4000 Hall-Effect joystick with non-contacting technology designed for use in Aerial Work Platform (AWP) applications for both scissor lifts and booms. dual-axis gates are available – round, square or plus – while the ergonomically-designed grip offers the choice of one or two top switches, as well as a person-present lever, meaning the unit can be used across a wide variety of machines.
Key Features
◾Designed primarily for Aerial Work Platforms
◾Single- or dual-axis, round gate, plus gate and square gate can choose
◾Top switch and person-present lever options
◾Choice of voltage outputs
◾Dual outputs on each axis, 10-90% or 20-80% of a 5V regulated supply
◾Rated for 6 million cycles
◾Under- or above-panel mounting
◾Enclosure sealing to IP67
◾EMC performance to 100V/m
Specification For more details and confirm part number, please contact our sales team. Tel:0086 21-50687812 Fax:0086 21-50687839 Email: sales@sh-boge.cn
