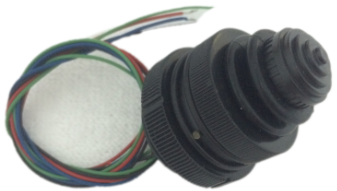

BGA105 contactless hall effect joystick controller is designed for precision fingertip control applications where safety and long trouble-free life are primary requirements. Two axis X.Y, standard handle with round gate in low cost.

Applications: powered wheelchair controllers, disabled mobility vehicles, robotic teach controllers, co-ordinate measuring machines, medical and CCTV equipment, wireless control , aerial platform, kinds of driller,snow removal truck.

Key Features
Compact units , high responsive
Superb proportional control
Long life , more than 5 million cycles
EMC-protected sealed to IP67 flange above

Electrical Characteristics
Power supply    5VDC±0.5                                Output Voltage at Centre 2.5±0.1VDC
Power Rating    0.1W                                          EMC Durability    100V/m
Current Consumption less than 21mA           Output signal 0.5-4.5VDC
Centre Tap Impedance  1KΩ                             Load Resistance  Over 1KΩ
Independent Linearity Tolerance ±4%           Electrical Deflection Angle ±18°

Mechanical & Environmental
Mechanical Angle   30 ±3°                                 Operating Force  ≤35gf
Spring Force  3N breakout, 4.5N full                 Push Strength 40gfKg for 10Sec
Storage Temperature    -45 to 90℃                   Operating Temperature  -40 to 85℃
Material    ABS                                                        Flyleads    28AWG, 200±10mm

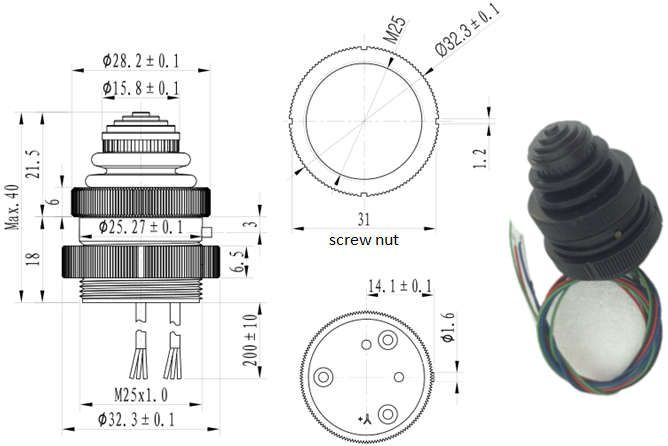

Outside Drawing Design



Specification
For more details and confirm part number, please contact our sales team.
Tel: 0086 21-50687812  Fax: 0086 21-50687839 Email: sales@sh-boge.cn
