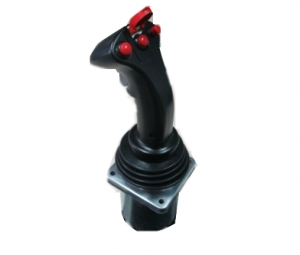

BGA7500 rugged hall effect contactless joystick controller is designed for strength and reliability demanding operator control applications inmilitary project, off-highway vehicles and other man-machine interfaces.

Application
Military, aerial platform, coal machine, fire cannon, Simulated flying empty platform
driller's console, offshore cranes,winch, crane truck, fire truck ,driller, loaders, excavators, access platforms, tractors and harvesters,port machine, dump truck, heavy fork, roller, hydraulic machine, snow removal truck, milling machine, jumbolter, wet spraying machinery, platform lorry, coal elevator.


Key Features
◾Rugged design with the better lever strength
◾Single , dual axis, three axis ,four axis ,5 axis , 6 axis and 7 axis control
◾Different switches or analog output handle choose
◾Button switches can with latch or spring , FNR switches function also viable
◾Hall Effect or potentiometer
◾Analog or CAN or switches or RS422 or USB output
◾Sealed above panel to IP66

MECHANICAL
LEVER OPERATION FORCE X, Y           10N breakout in centre, 20N full deflection
LEVER MECHANICAL ANGLE X,Y         15±1°
LEVER OPERATION FORCE FOR Z     10N breakout in centre, 25N full deflection
LEVER MECHANICAL ANGLE FOR Z    25±3°
EXPECTED LIFE                      over 2 million operations

WEIGHT                                       1.3KG
MATRIAL                                      aluminium alloy handle , cold rolled steel for base
CABLE TYPE and LENGTH      AWG24  780mm

ENVIRONMENTAL
OPERATEING TEMPERATURE          -40 to 85℃
STORAGE TEMPERATURE                -50 to 95℃
ENVIRONMENTAL PROTECTION      IP65 IEC60529

ELECTRICAL
SUPPLY VOLTAGE                   5±0.5VDC
MAX CURRENT                         20mA
CENTRE POSITION                  2.25-2.75VDC as supply voltage 5VDC
X  AXIS OUTPUT                       10-90%*Vsupply (0.5 to 4.5VDC)
Y  AXIS OUTPUT                       10-90%*Vsupply (0.5 to 4.5VDC)
Z  AXIS OUTPUT                      10-90%*Vsupply (0.5 to 4.5VDC)

HANDLE OF JOYSTICK ELECTRIC
W1AXIS OUTPUT       10-90%*Vsupply (0.5 to 4.5VDC)
S2                                  4 direction switches output, spring back function
S1                                  button switch with latch function
                                    Remark:analogy output all 0.5-4.5VDC with 5VDC supply ,centre 2.25-2.75VDC

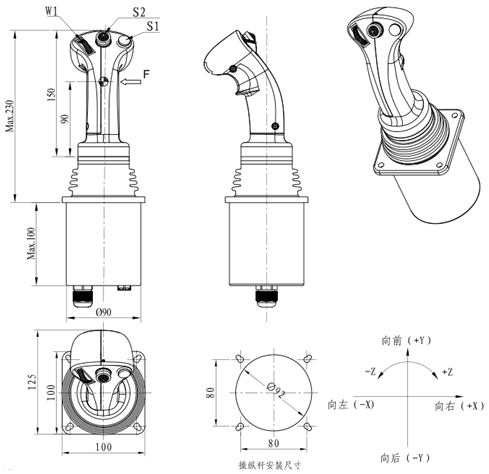

INSTALLATION DIMENSIONS































Specification
For more details and confirm part number, please contact our sales team.
