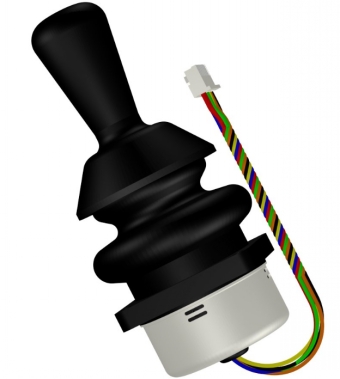

BGA5000 contactless hall effect joystick controller is designed for precision fingertip control applications where safety and long trouble-free life are primary requirements. Two axis X.Y, standard handle with round gate in low cost.

Applications: powered wheelchair controllers, disabled mobility vehicles, robotic teach controllers, co-ordinate measuring machines, medical and CCTV equipment, wireless control ,aerial platform, kinds of driller,snow removal truck.

Key Features
Compact units ,high responsive
Superb proportional control
Long life , 10 million cycles min
EMC-protected sealed to IP65

Electrical Characteristics
Power supply    5VDC±0.5                                Output Voltage at Centre 2.5V±120mV
Power Rating    0.1W                                           Output Voltage at Tap 2.5V±80mA
Current Consumption less than 20mA            Output signal 0.5-4.5VDC
Centre Tap Impedance  1K                                 Load Resistance  Over 10KΩ
Independent Linearity Tolerance ±3%           Electrical Deflection Angle ±19°
EMC Durability    100V/m

Mechanical & Environmental
Mechanical Angle   38 ±5°                                 Operating Force  350 ±150gf
Pull Strength of Handle  Over 1.5Kg for 3Sec   Push Strength 10Kg for 10Sec
Storage Temperature    -40 to 70℃                 Operating Temperature  -25 to 70℃
Dry Heat    80±2℃,96H                                     Cold  -30 ±2℃,96H

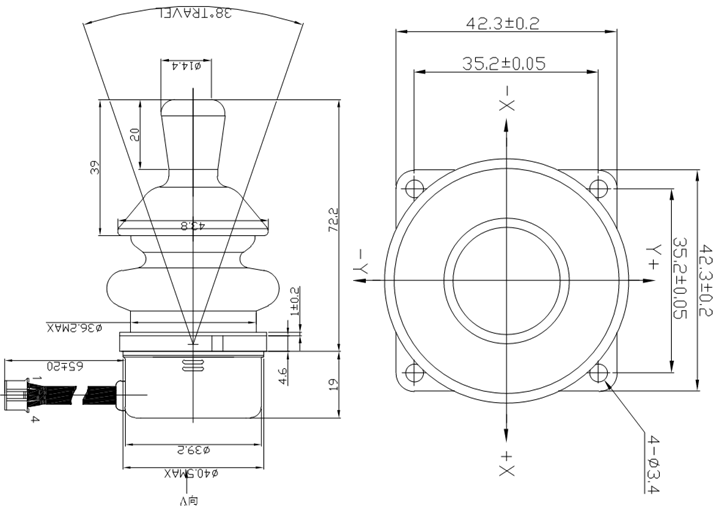

Outside Drawing Design

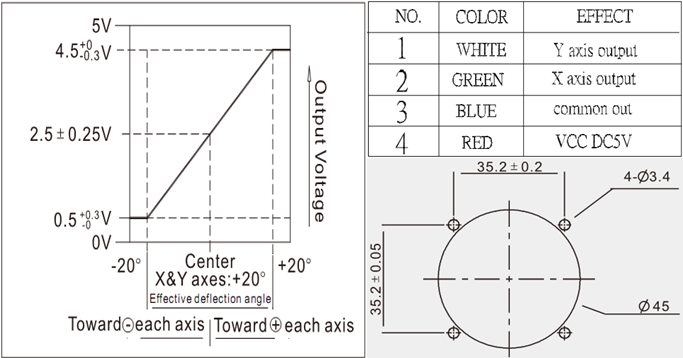

Specification
For more details and confirm part number, please contact our sales team.
