MJ-2K CP mini analog joystick

Features
excellent lifetime robust design, compact conductive plastic

Applications
Platformlifts
Remote controls
Fork lift trucks
Hydraulic
Measuring machines
Medicine technology
Microscopy

Electrical characteristics
Resistance range/axis  5 KΩ  (1)
Resistance tolerance  ± 20%
Electrical angle  > ± 25°  (1)
Independent linearity  ± 2%
Centre detect switch/axis  <± 3°C open
Power rating/axis  0,2W at 40°
Operating voltage (VCC)  ≤30 V DC
Wiper current  < 10 µA
Wiper current ≤1 mA in failure mode
Insulation resistance 1 GΩ at 500VDC
Dielectric withstanding voltage  2000 V

Mechanical characteristics
Life time > 5 Mio cycles
Displacement angel > ± 26°
Seal condition IP 66
Operating force  5 N typical  (1)
Coulisse  quadrat.  (1)
Midposition wiper  ± 1,5°
Impact force  100 N

Environmental characteristics
Storage temperature  -40°C ÷ + 85°C  (1)
Operating temperature  -25°C ÷ + 70°C  (1)
Climatic class 25/085/56
Vibration 10G
Shock  50G

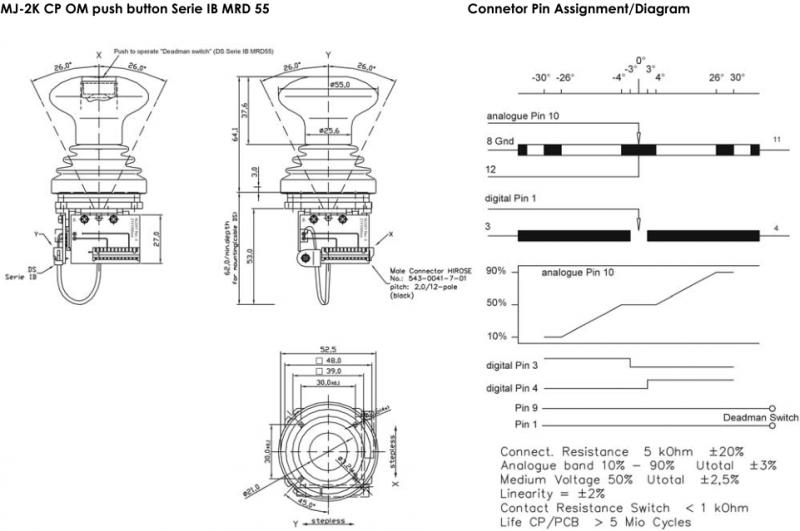

Outside design drawing

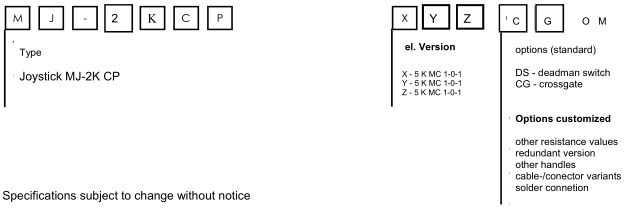

Part number to choose


Specification
For more details and confirm part number, please contact our sales team.
Tel:+0086 21-50687812  Fax:+0086 21-50687839 Email: sales@sh-boge.cn
