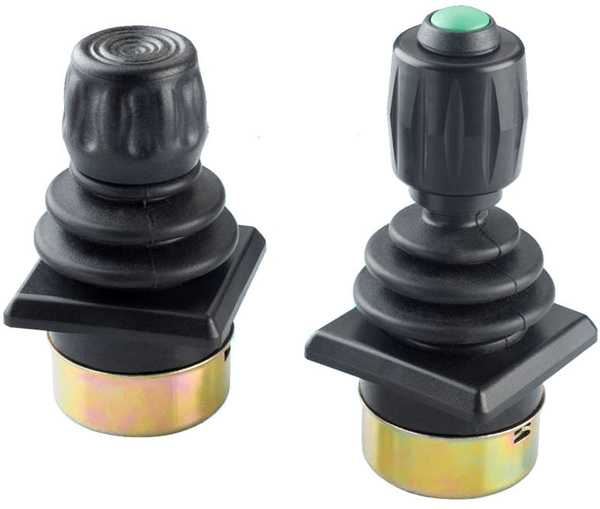

JC2000 contactless joystick controller is designed for precision fingertip control applications where safety and long trouble-free life are primary requirements.



Available in one, two or three axis configurations and can accommodate a choice of handles, including push-button switch versions.



The JC2000's compact size, low operational force and high reliability are ideal for applications which include powered wheelchair controllers, disabled mobility vehicles, robotic teach controllers, co-ordinate measuring machines, medical and CCTV equipment, professional camera controls and radio or infra-red crane chest-pack controllers.



Key Features

◾ Compact size

◾ Depth below panel less than 31mm

◾ Contactless sensing system

◾ No flexing wires (except when handle switches fitted)

◾ Dual independant outputs on single/dual axis versions

◾ Choice of handles with or without switch

◾ Aligned seats (low force lever guidance)

◾ Polarised latching connector

◾ CE Approved

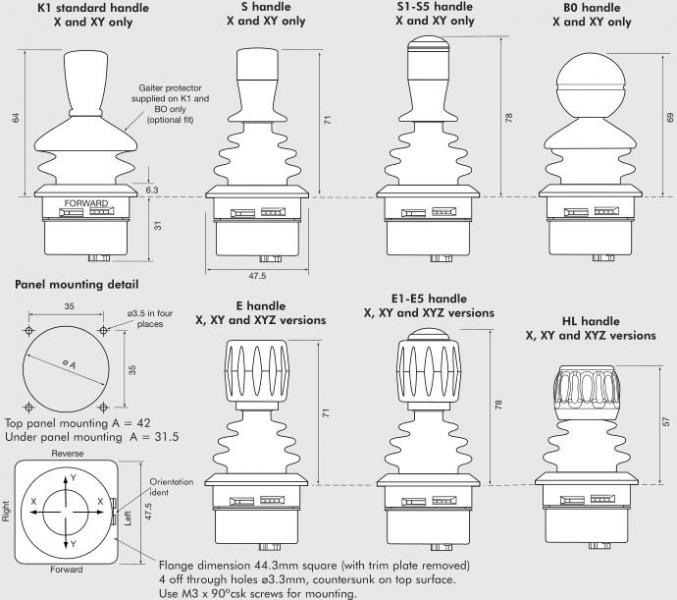

Outside Design Drawing


Specification
For more details and confirm part number, please contact our sales team.
