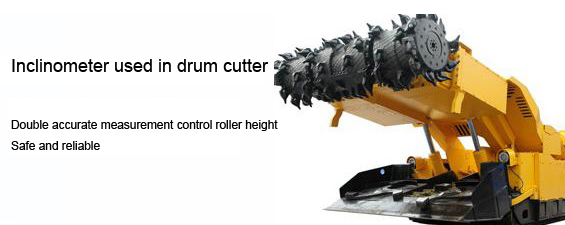

Tilt sensor used in Drum cutter

Shearer drum automatically adjustable high experimental device and control, including fuselage, rocker arm, roller, adjustable high pump station, Angle controller and displacement controller. Fuselage and rocker arm articulated, rocker arm output end and drum coupling. Adjustable high pumping station through the cylinder to drive rocker arm and roller sports, simulation of coal winning machine operation. Will Angle sensor installed in the fuselage and rocker arm, displacement sensor installed in the cylinder. Fuselage and rocker arm on the Angle sensor output and corresponding Angle preset value for comparison, the difference value as Angle controller input, Angle controller output as oil cylinder displacement controller default value, and oil cylinder displacement sensor output data were compared, and the error send oil cylinder displacement controller, the oil cylinder displacement controller output control servo valve opening and direction, to realize drum height adjustment.

With more than ten years in the Angle sensor industry research and development and production, Rion technology co., LTD. Research and development production Angle sensor can very good application in the regulatory control.
