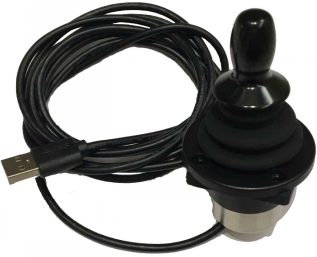

BGA300 Hall-Effect joystick with non-contacting technology, under- or above-panel mounting installation. By using import hall-effect sensor and adjust output linearity by temperature compensation for each joystick. Stainless steel and aluminium alloy material made joystick very ruggedness and small weight. Operation way comfortable and not tired.

Application
Robot, medical equipment, CCTV, X-ray instrument, remote control and CMM

Key Features
◾Designed single axis, dual axis, three axis, operation in 360 degree
◾Top switch can choose in the handle, switch with water proof function
◾Supply voltage can be 5VDC or 12-24VDC
◾Choice of output RS485, RS422, RS232, USB2.0
◾Operation angle is ±20 degrees for X\Y axis,  ±30 degrees for Z axis
◾Rated for 5 million cycles
◾Working force 0.65N or 0.98N
◾Enclosure sealing to IP65
◾Working TEMP -40℃to 70℃

Specification
For more details and confirm part number, please contact our sales team.
