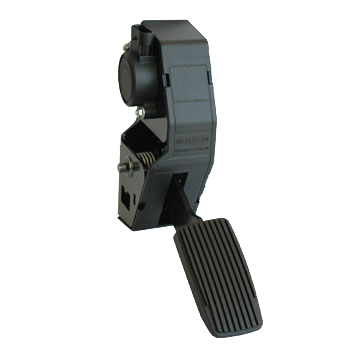

MO126 Throttle Pedal
Application
Tractors, harvester, yachts, off vehicles , on-high way truck, scrubbing machine, oil&gas drilling machine, match to all kinds of engines
|
Technical Data |
|
Engines |
Suitable for different engine interfaces |
|
Technology |
Contactless measuring principle |
|
Angle Range |
19° |
|
Counter Connector |
6 way,Delphi Packard Metric Pack 150 |
|
Protection |
Sensor IP6K9K sealed |
|
Operating Temp |
-40 + 85°C |
|
Lifetime |
Up to 10 Million |
|
Supply Voltage |
5V or 10-30V |
|
Output |
Single or Double output full redundant |
|
Output Type |
Analog,PWM ,IVS options |
|
Output Voltage |
For Analog,programmable ..........0-5V |
|
For PWM and IVS.......................5V or 10-30Voptions |
|
Kick down |
Virtual effect option |
|
Mechanic |
Two independent springs |
|
Weight |
1.3kg |
|
Housing material |
Heavy duty metal case |
|
Application |
Commercial and off road vehicles |
|
Options |
Connector kit,customized wire harness |
|
Treadle |
A and D treadle position option |

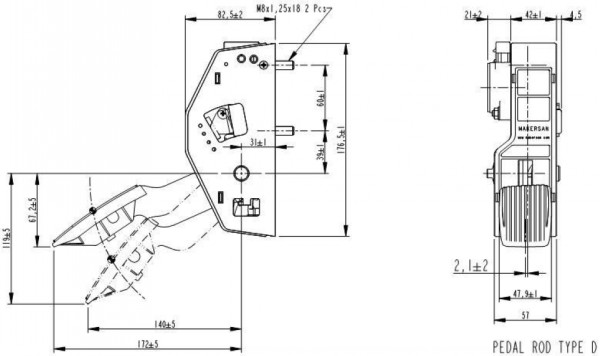

Design Dimensions
Specification
For more details and confirm part number, please contact our sales team.
