The Model 7131A  is a miniature triaxial IEPE accelerometer available in ±50g to ±2000g dynamic ranges. The accelerometer features a hermetically sealed Titanium construction with a 4-pin Microtech connector interface. The model 7131A incorporates stable piezo-ceramic crystals in annular shear mode which provide a flat frequency response up to >10kHz

Key Features
4-pin Connector Interface
Wide bandwidth up to 10kHz
Adhesive Mounting
Miniature Triaxial
Annular Shear Mode Crystals
Stable Temperature Response
Isolated Case Option

Application
Vibration & Shock Monitoring
Laboratory Testing
Modal Applications
High Frequency Applications
General Purpose Usage
Stress Screening

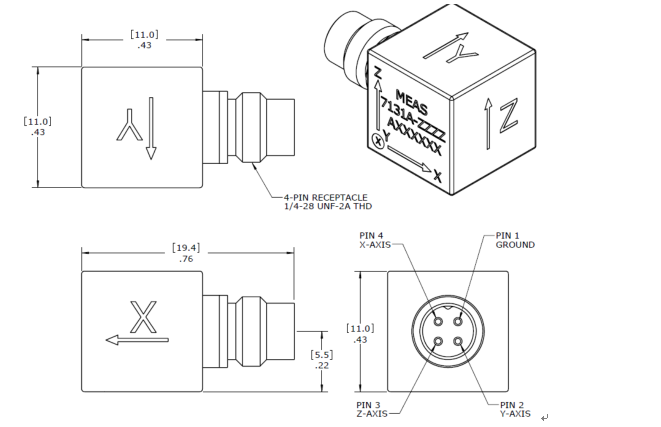

Outside design dimension

Specification
For more details and confirm part number, please contact our sales team.
